Kia Cadenza: Lubrication System / Oil Pan Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Engine Mechanical System / Lubrication System / Oil Pan Components and Components Location

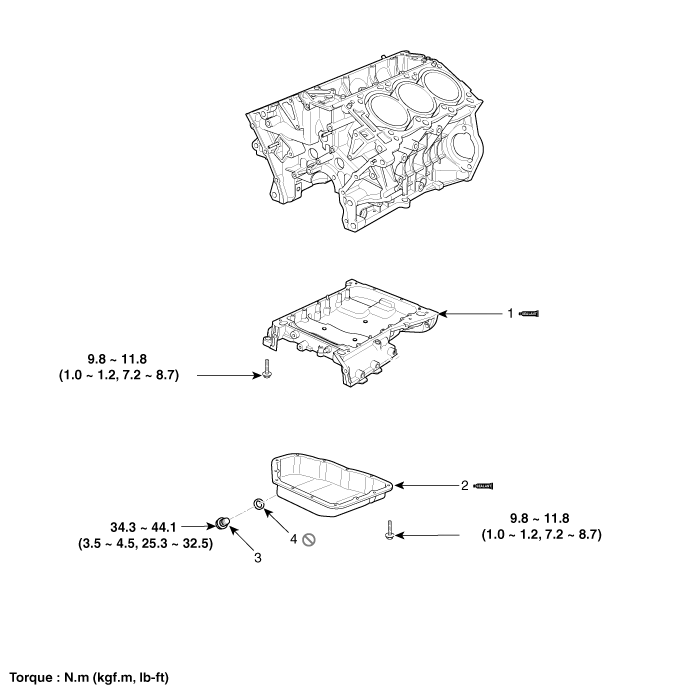

Components

1. Upper oil pan
2. Lower oil pan
3. Drain plug
4. Drain plug gasket

Oil Filter Body Repair procedures
Removal and Installation 1. Drain engine oil. (Refer to Lubrication System - "Engine Oil") 2. Remove the water center pipe. (Refer to Cooling System - "Water Temperature Control Assembly") ...

Oil Pan Repair procedures
Removal [Lower oil pan] 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Drain the engine oil. (Refer to Lubrication System ...
