Kia Cadenza: Light bulbs / Light bulb position (Rear)
![](images/light_bulb_position_rear_-1273/904/pages.48(4).jpg)
![](images/light_bulb_position_rear_-1273/904/pages.49(4).jpg)
![](images/light_bulb_position_rear_-1273/904/pages.50(4).jpg)

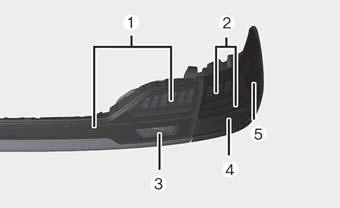

(1) Tail lamp (LED type)
(2) Stop and tail lamp (LED type)
(3) Back-up lamp (Bulb type)
(4) Rear turn signal lamp (Bulb type)
(5) Rear side marker (LED type)

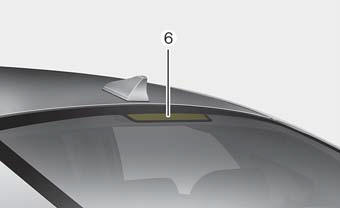

(6) High mounted stop lamp (LED
type)

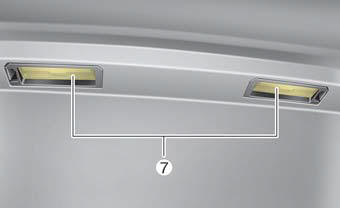

(7) License plate lamp (Bulb type)
(1) Headlamp (Low) (LED type)
(2) Headlamp (High) (LED type)
(3) Position lamp (LED type)
(4) Front side marker (LED type)
(5) Front turn signal lamp (Bulb type) ...
(1) Side repeater lamp (LED type) ...
Other information:
Inspection
[Measuring Resistance]
1.
Disconnect the cruise control switch connector from the control switch.
2.
Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switchTerminalResistance (±5%) [kΩ]CANCEL2 - ...
ECM Terminal And Input/Output signal
ECM Terminal Function
Connector [E600-A]
Pin No.DescriptionConnected to1- 2- 3- 4Immobilizer Lamp control outputImmobilizer Lamp [Without Button Engine Start System]5Power groundChassis Ground6Power groundChassis Ground7- 8- 92nd CAN [High]Mu ...
