Kia Cadenza: Light bulbs / Light bulb position (Front)

Kia Cadenza YG 2016-2024 Owners Manual / Maintenance / Light bulbs / Light bulb position (Front)

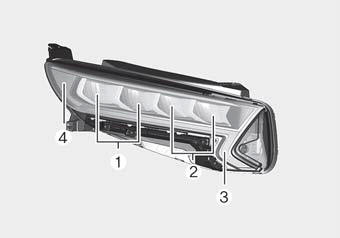

(1) Headlamp (Low) (LED type)
(2) Headlamp (High) (LED type)
(3) Position lamp (LED type)
(4) Front side marker (LED type)

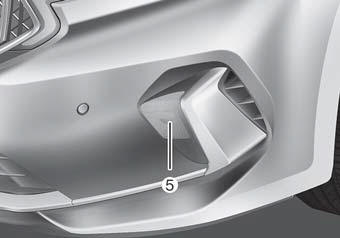

(5) Front turn signal lamp (Bulb type)
