Kia Cadenza: Lighting / Lighting control

Kia Cadenza YG 2016-2024 Owners Manual / Features of your vehicle / Lighting / Lighting control

The light switch has a Headlight and a Parking light position.

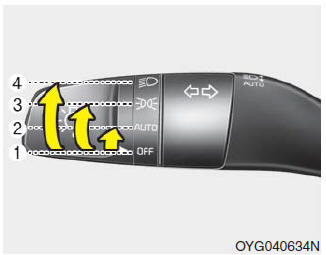

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

(1) OFF position
(2) Auto light position
(3) Parking & Tail light
(4) Headlight position

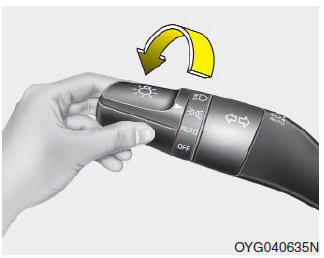

When the light switch is in the parking light position, the tail, license and instrument panel lights will turn ON.

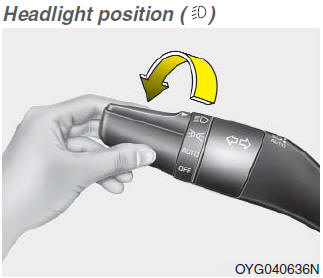

When the light switch is in the headlight position, the head, tail, license lights will turn ON.

✽ NOTICE

The Engine Start/Stop button must be in the ON position to turn on the headlights.

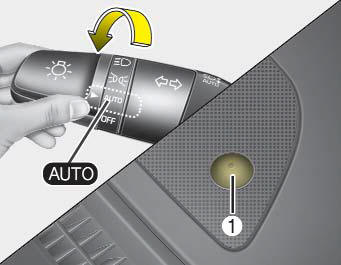

Auto light position

When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside of the vehicle.

CAUTION

Headlight escort function
If you turn the Engine Start/Stop button to the ACC or OFF position with the headlights ON, the headlights remain on for about 5 minutes. However, if the driver's door is opened and closed, ...

High beam operation
To turn on the high beam headlamp, push the lever away from you.The lever will return to its original position. The high beam indicator will light when the headlight high beams are switched ...
