Kia Cadenza: Lighting / High beam operation
.jpg)

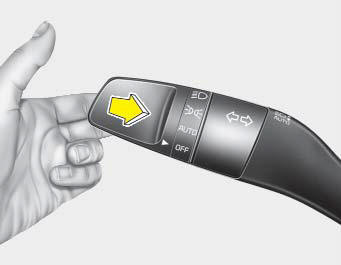

To turn on the high beam headlamp,
push the lever away from you.The lever
will return to its original position. The
high beam indicator will light when the
headlight high beams are switched on.
To turn off the high beam headlamps,
pull the lever towards you. It will return
to the normal (low beam) position
when released.
To prevent the battery from being
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.
WARNING - High beams
Do not use high beam when
there are other vehicles in front
of your vehicle. Using high
beam could obstruct the other
driver’s vision.
.jpg)

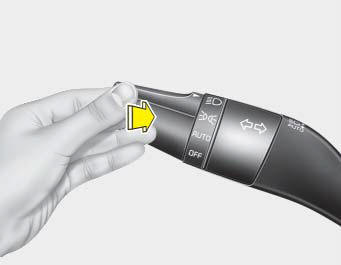

To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when
released. The headlight switch does
not need to be on to use this flashing
feature.
