Description

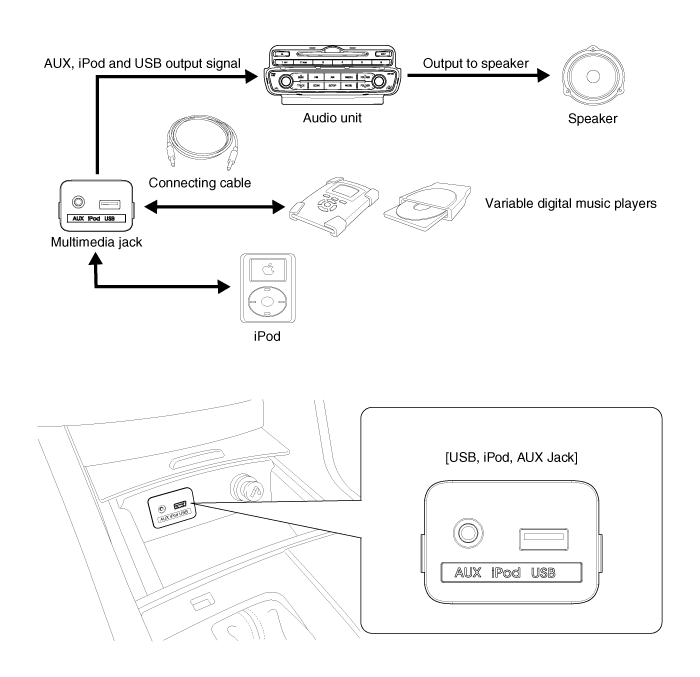

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle''s sound system when it is linked to this jack. The customer has this added option.
In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

Multimedia jack Schematic Diagrams
Circuit Diagram ...

Multimedia jack Repair procedures
Removal 1. Remove the shift lever knob. (Refer to Body - "Console") 2. Remove the floor console upper cover. 3. Disconnect the connector (A) from the floor console upper cover. 4. Rem ...
