Kia Cadenza: Scheduled maintenance service / Normal Maintenance Schedule - Non Turbo Models
The following maintenance services must be performed to ensure good emission
control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where
both mileage and time are shown, the
frequency of service is determined by whichever occurs first.

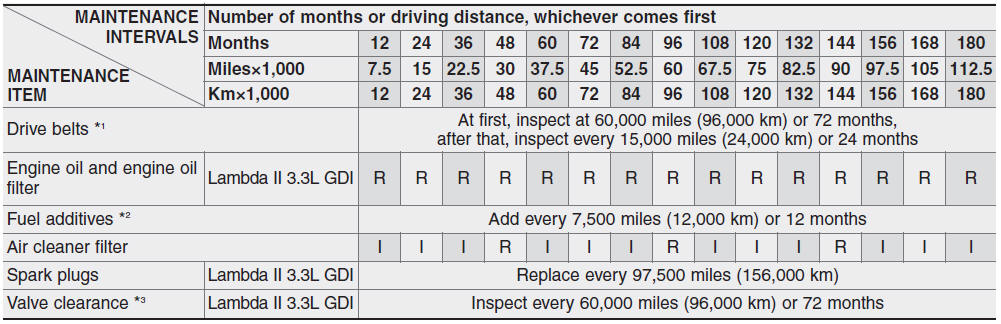

.jpg)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

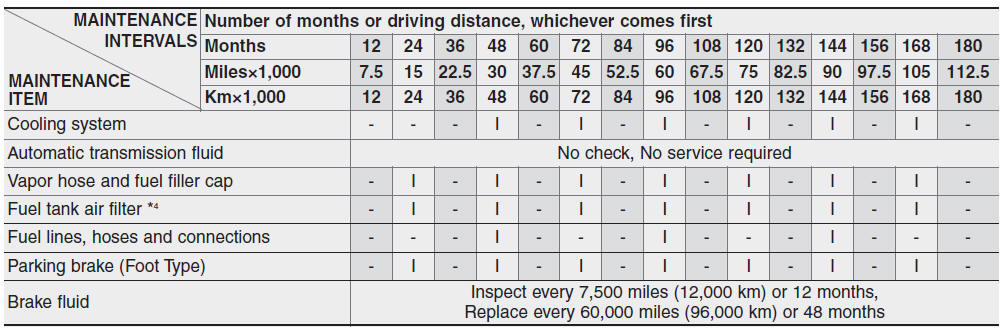

.jpg)

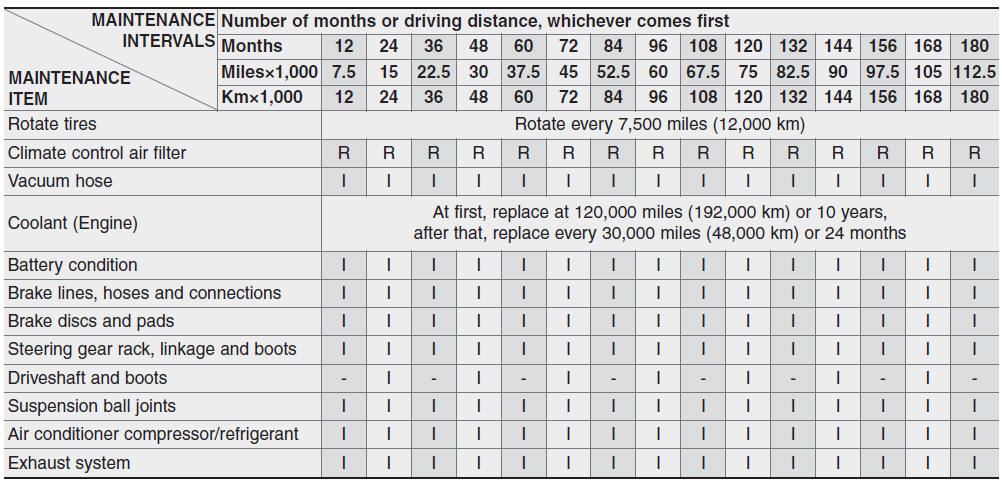

.jpg)
