Kia Cadenza YG: Hydraulic System / Oil Pump Components and Components Location
| Components |

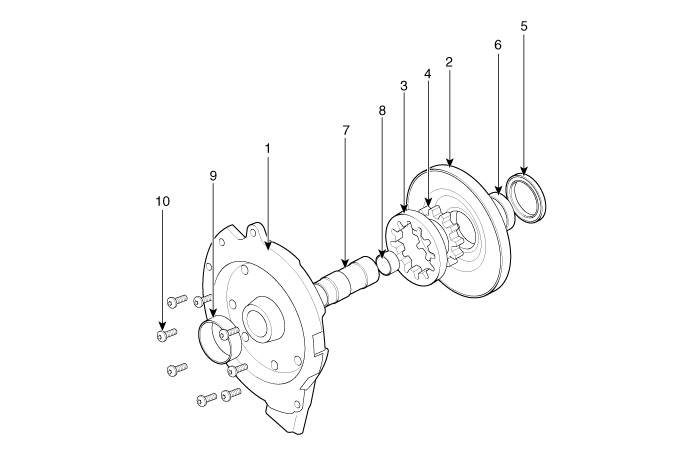

| 1. Reaction shaft support assembly 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal | 6. Bush-Housing 7. Reaction shaft 8. Bush- Reaction shaft 9. Sleeve 10. Bolt |

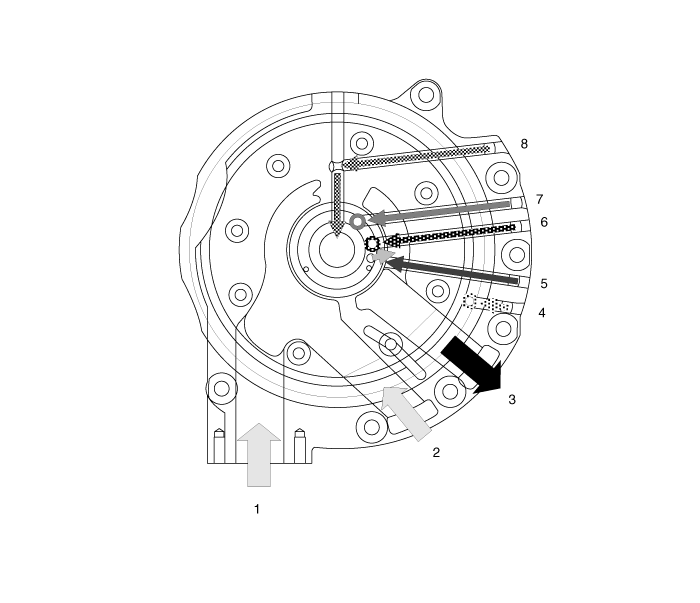

| 1. Inhale(Oil filter) 2. Inhale(Valve body) 3. Outlet 4. 26/B operation pressure | 5. 35R/C operation pressure 6. Lubrication 7. Line up clutch operation pressure 8. Line up clutch cancellation |
Description The oil pump is built-in as a single unit with the 26 Brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operation of the clutch and brakes.
Components Location 1. Injection hole(eyebolt)2. Oil level plug3. Oil drain plug
