Kia Cadenza: Features of your vehicle / Panoramic sunroof

Kia Cadenza YG 2016-2024 Owners Manual / Features of your vehicle / Panoramic sunroof

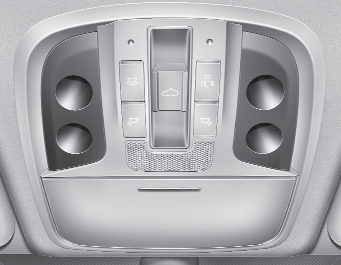

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console.

The sunroof can be operated for approximately 30 seconds after the ENGINE START/STOP button is in the OFF position.

However, if the driver’s door is opened, the sunroof cannot be operated even within the 30 second period.

CAUTION - Sunroof motor damage

To prevent damage to the sunroof, periodically remove any dirt that may accumulate on the guide rail.

In cold and wet climates, the sunroof may not work properly due to freezing conditions.

After the vehicle is washed or in a rainstorm, be sure to wipe off any water that is on the sunroof before operating it.

CAUTION - Sunroof control lever

Do not continue to press the sunroof control lever after the sunroof is fully opened, closed, or tilted. Damage to the motor or system components could occur.

The sunroof cannot slide when it is in the tilt position nor can it be tilted while in an open or slide position.

WARNING - Roof cargo

Do not operate the sun roof while using the roof rack to transport cargo.This may cause the cargo to come loose and distract the driver.

WARNING

Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.

WARNING

Do not allow children to operate the sunroof. This may result in injury to the child.

WARNING

In order to prevent accidental operation of the sunroof, especially by a child, do not let a child operate the sunroof.

WARNING

Do not sit on the top of the vehicle. It may cause vehicle damage.

CAUTION

Do not extend any luggage outside the sunroof while driving.

Closing the fuel filler door
1. To install the cap, turn it clockwise until it “clicks” once. This indicates that the cap is securely tightened. 2. Close the fuel filler door and push it in lightly making sure that it ...

Sunroof open warning
If the driver turns off the engine when the sunroof is not fully closed, the warning chime will sound for a few seconds and the above warning illustration will appear on the LCD display. Cl ...
