Kia Cadenza YG: Power Door Mirrors / Power Door Mirror Actuator Repair procedures

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Repair procedures

Inspection
1.
Remove the front door quadrant delta cover.
(Refer to Body - "Front Door")
2.
Disconnect the power door mirror connector from the harness.

3.

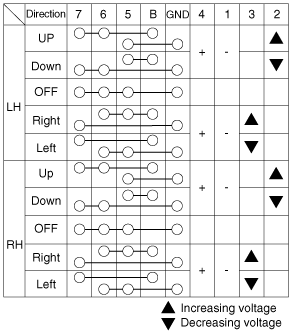

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

Mirror Heater Inspection

Puddle Lamp

ECM

Side Repeater Lamp

Folding Mirror

    Inspection 1. The DDM inputs can be checked using the GDS. 2. To check the input value of door lock switch, select option "IPM". 3. Select option "DDM (Driver Door Module)".
