Kia Cadenza: Power windows / Power window lock button
.jpg)

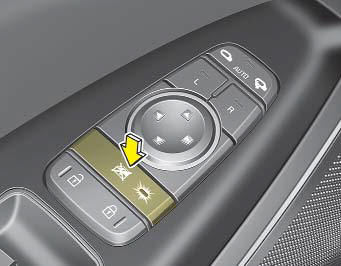

- The driver can disable the power
window switches on the passenger
doors by pressing the power window
lock button located on the driver’s
door to the LOCK position
(pressed).
- When the power window lock
button is pressed :
- The driver's master control can
operate all the power windows.
- The front passenger's control can
operate the front passenger's
power window.
- The rear passenger's control cannot
operate the rear passenger's
power window.
CAUTION - Opening /closing
Window
To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
Always double check to make sure
all arms, hands, head and other
obstructions are safely out of the way
before closing a window.
WARNING - Power windows
Do not allow children to play
with the power windows. Keep
the power window lock button
(on the driver's door) in the
LOCK (pressed) position.
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers
or raises the window even when the
switch is released. To stop the window
at ...
Other information:
Blind-Spot View Monitor displays the
rear and side views of the vehicle on
a center cluster screen upon the driver’s
activation of the turn signal.
To turn on BVM : Under condition
BVM is enabled in the settings
(1) The Engine Start/Stop button is
turned to the ON position.
(2) The ...
Inspection
1.
Turn ignition switch OFF.
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.
Disconnect the solenoid valve connector (A).
4.
Measure the resistance between power terminal (5) and signal terminal (11).
Specification : 5.1 ± ...
