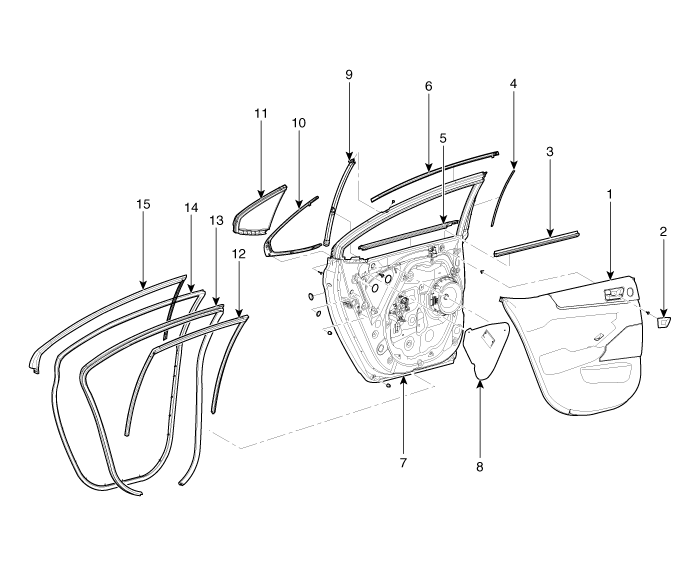

Components

1. Rear door trim
2. Rear inside handle cap
3. Rear door belt inner weatherstrip
4. Rear door side weatherstrip mounting moulding
5. Rear door belt outside weatherstrip
6. Rear door frame moulding
7. Rear door panel
8. Rear door seal

9. Rear door DIV channel
10. Rear door frame rear moulding
11. Rear door fixed glass weatherstrip
12. Rear door glass run
13. Rear door body side weatherstrip
14. Rear door side weatherstrip
15. Rear door upper weatherstrip

Front Door Repair procedures

Replacements Door Trim Replacement • Be careful not to scratch the door trim and other parts. • Put on gloves to protect your hands. 1. Usi ...

Rear Door Repair procedures

Replacement Door Trim Replacement • Be careful not to scratch the door trim and other parts. • Put on gloves to protect your hands. 1. Using ...
