Kia Cadenza: If you have a flat tire / Removing and storing the
spare tire
.jpg)

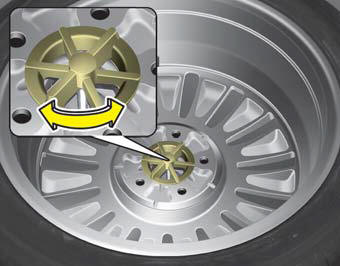

Turn the tire hold-down wing bolt
counterclockwise.
Store the tire in the reverse order of
removal.
To prevent the spare tire and tools
from “rattling” while the vehicle is in
motion, store them properly.
.jpg)

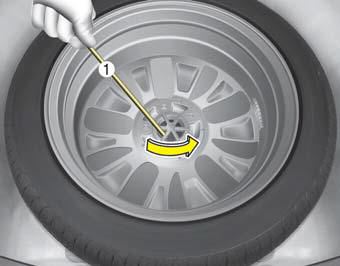

If it is hard to loosen the tire holddown
wing bolt by hand, you can
loosen it easily using the jack handle.
1. Put the jack handle (1) inside of
the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt
counterclockwise with the jack
handle.
Use caution when utilizing the sharp
jack handle.
Jack and tools
The jack and wheel lug nut wrench
are stored in the luggage compartment.
Remove the panel indicated in the
illustration.
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
...
1. Park on a level surface and apply
the parking brake firmly.
2. Place the transmission shift lever
in P (Park).
3. Activate the hazard warning flashers.
4. Remove the wheel lug nut wrench ...
