Kia Cadenza: Panoramaroof / Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Panoramaroof / Schematic Diagrams

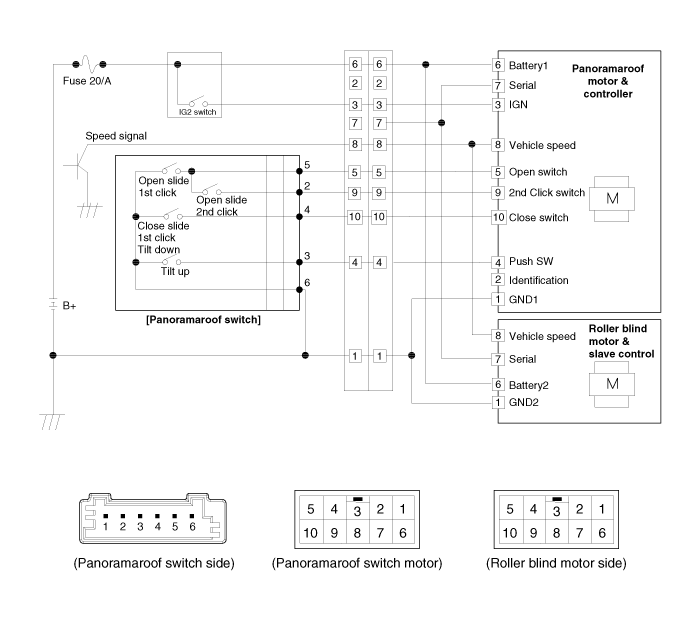

Circuit Diagram (1)

Circuit Diagram (2)

Components and Components Location

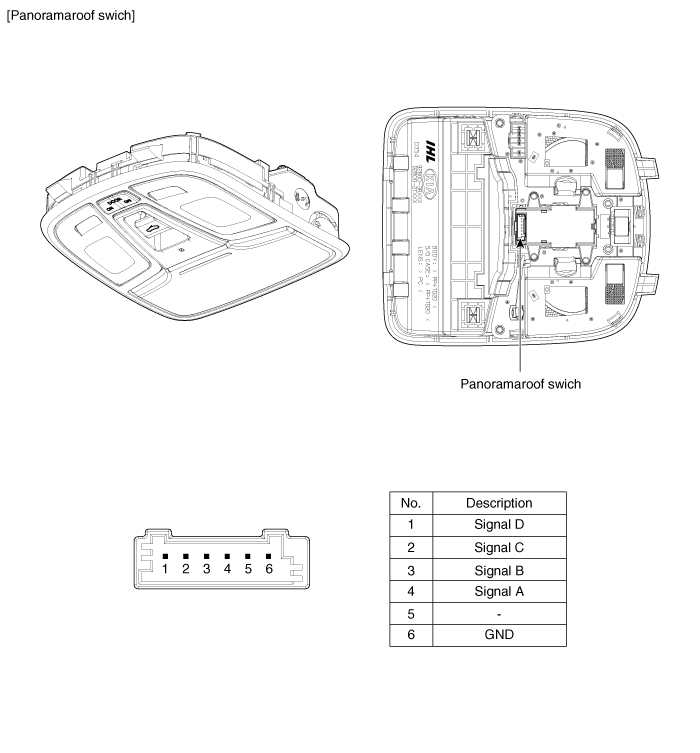

Component Location 1. Panoramaroof2. Panoramaroof switch3. Panoramaroof motor & controller4. Roller blind motor & slave controller ...

Panoramaroof Switch Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the overhead console lamp assembly. (Refer to Body - "Roof Trim") 3. Check for continuity between the terminals. If t ...
