Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Panoramaroof / Components and Components Location

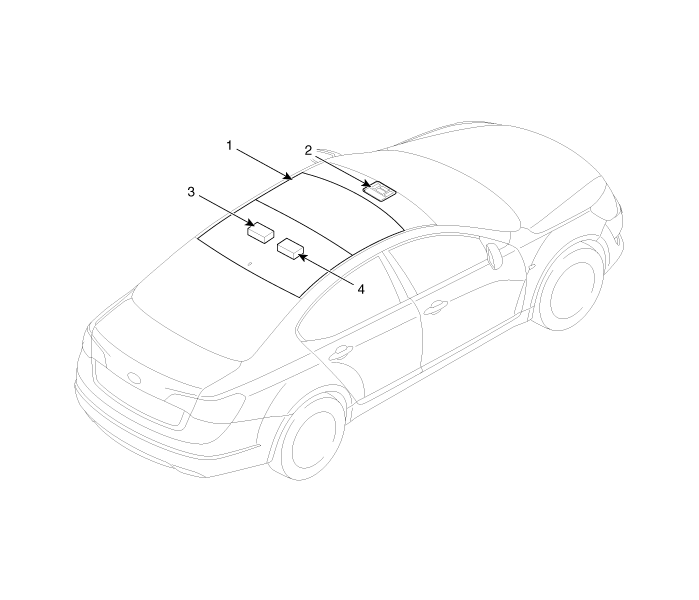

Component Location

1. Panoramaroof
2. Panoramaroof switch
3. Panoramaroof motor & controller
4. Roller blind motor & slave controller

    Circuit Diagram (1) Circuit Diagram (2)

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Mode Control Actuator Repair procedures

    Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.

    Kia Cadenza YG 2016-2021 Service Manual: Auto defoging actuator Repair procedures

    Inspection 1. Ignition "OFF”. 2. Disconnect the connector of auto defog control actuator. 3. Verify that the auto defog control actuator operates to the defrost ON mode when connecting 12V to the terminal 3 and grounding terminal 7. 4.
