Kia Cadenza: MTS System / Telemetics Unit (TMU) Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Body Electrical System / MTS System / Telemetics Unit (TMU) Components and Components Location

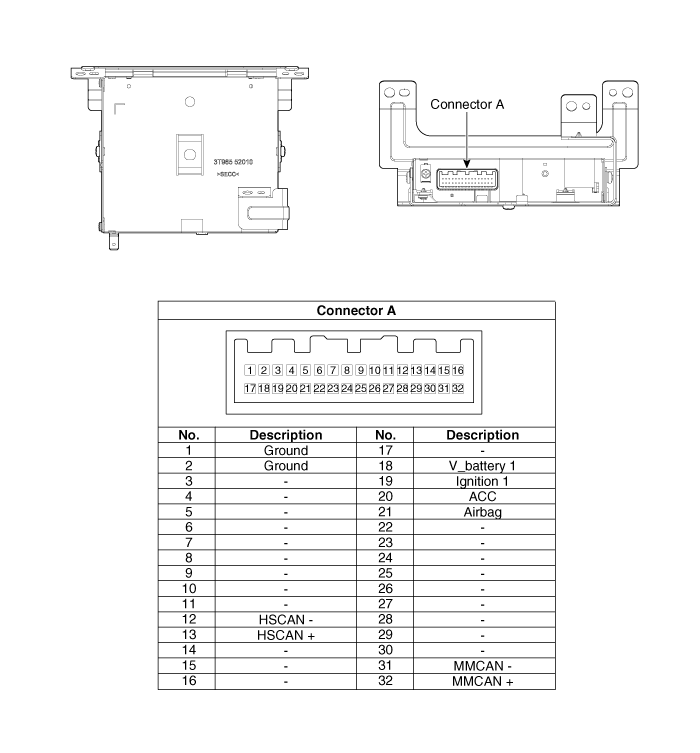

Component

Connector Pin Specification
No.
Pin Name
Type
From
To
Description (Wiring Spec.)
1
GND
DC Ground
TMU
Battery
Connected to battery ground
2
GND
DC Ground
TMU
Battery
Connected to battery ground
3
-
-
-
-
-
4
-
-
-
-
-
5
-
-
-
-
-
6
-
-
-
-
-
7
-
-
-
-
-
8
-
-
-
-
-
9
-
-
-
-
-
10
-
-
-
-
-
11
-
-
-
-
-
12
HS CAN (-)
Data I/O
BUS
BUS
High Speed CAN bus low
13
HS CAN (+)
Data I/O
BUS
BUS
High Speed CAN bus high
14
-
-
-
-
-
15
-
-
-
-
-
16
-
-
-
-
-
17
-
-
-
-
-
18
V battery 1
DC Input
Battery
TMU
DC level input from battery Supply power to TMU
19
Ignition 1
Data Input
Junction Box
TMU
Vehicle Key mode status
20
ACC
Data Input
Junction Box
TMU
Vehicle Key mode status
21
Airbag
Data Input
ACU
TMU
Airbag status data from ACU
22
-
-
-
-
-
23
-
-
-
-
-
24
-
-
-
-
-
25
-
-
-
-
-
26
-
-
-
-
-
27
-
-
-
-
-
28
-
-
-
-
-
29
-
-
-
-
-
30
-
-
-
-
-
31
MM CAN (-)
Data I/O
BUS
BUS
Low Speed CAN bus low
32
MM CAN (+)
Data I/O
BUS
BUS
Low Speed CAN bus high

Description and Operation
Description The Vehicle Information System is a Telematics service that ensures comfortable and enjoyable driving by providing safety, security, and vehicle diagnostic information, with the opt ...

Telemetics Unit (TMU) Repair procedures
Removal     • Take care not to scratch the crash pad and related parts. 1. Disconnect the negative (-) battery terminal. 2. Remove the AVN monitor. (R ...
