Kia Cadenza YG: Audio / Troubleshooting
| Troubleshooting |

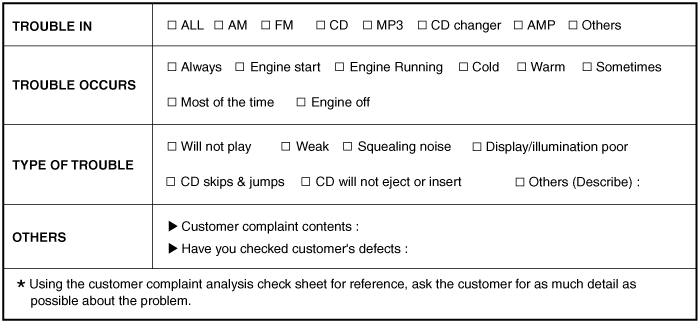

| Customer Complaint Analysis Check Sheet |

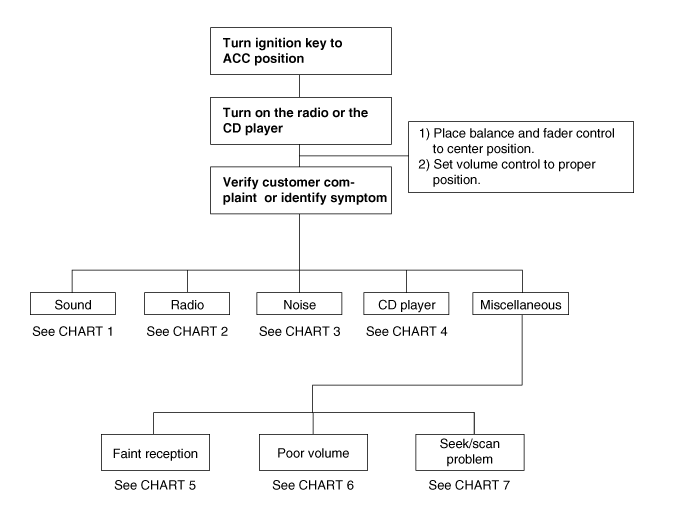

There are six areas where a problem can occur: wiring
harness, the radio, the CD player, and speaker. Troubleshooting enables
you to confine the problem to a particular area.

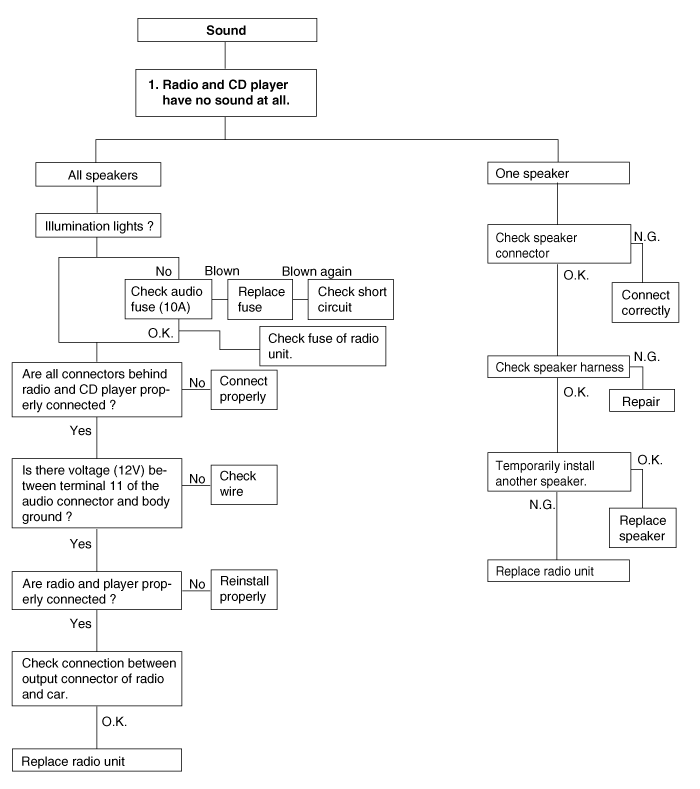

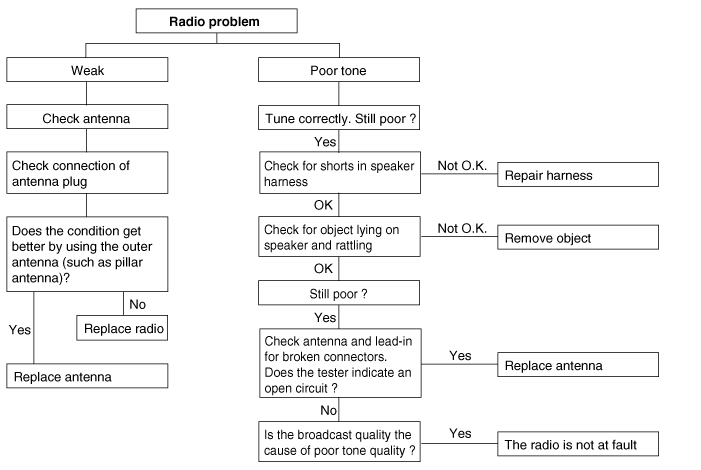

| Chart 1 |

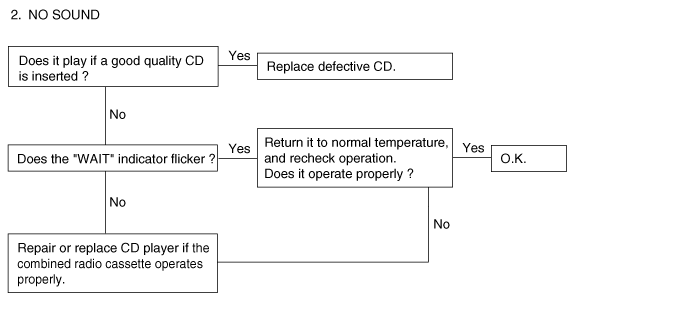

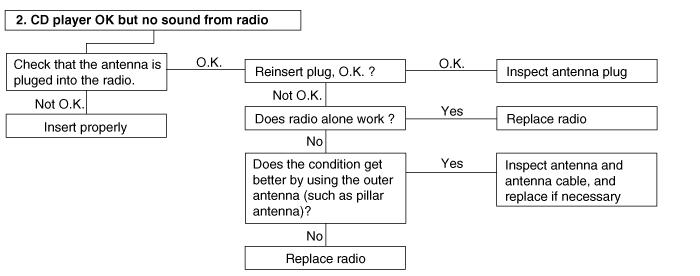

| Chart 2 |

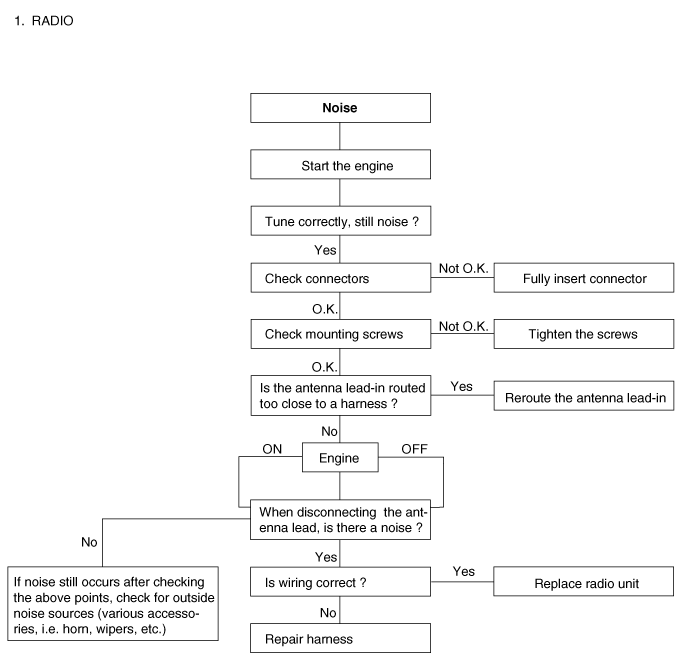

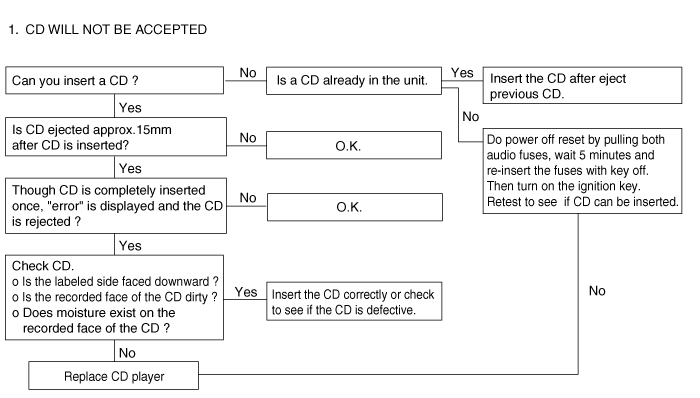

| Chart 3 |

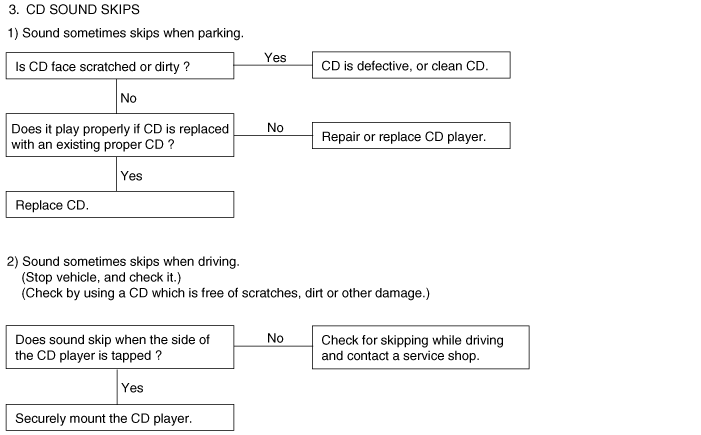

| Chart 4 |

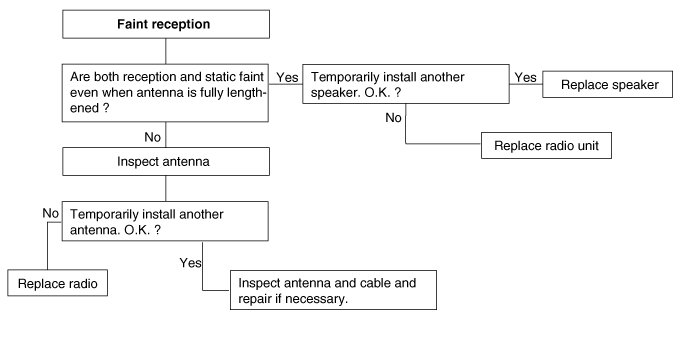

| Chart 5 |

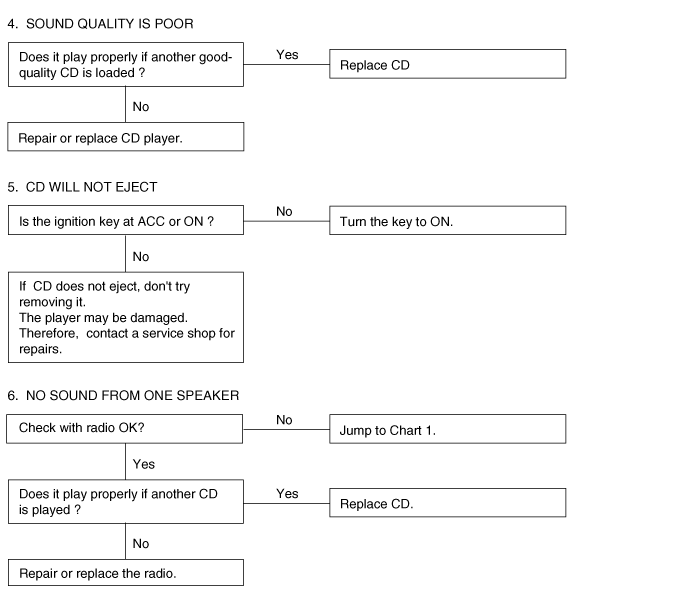

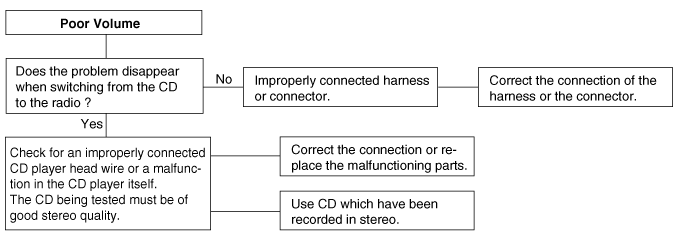

| Chart 6 |

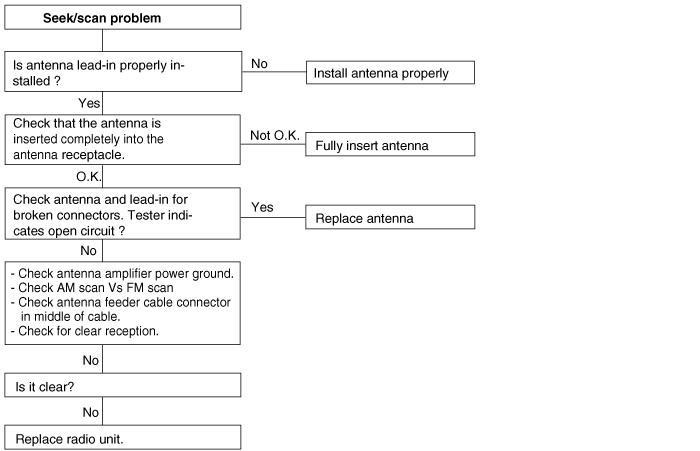

| Chart 7 |
