Kia Cadenza: Features of your vehicle / Trunk
Opening the trunk

- Make sure the vehicle is in P (Park)
and set the parking brake.
- Press the switch on the trunk after
unlocking the door by smart key.
- Press the trunk unlock button of
smart key for more than 1 second.

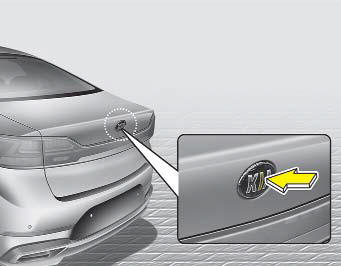

- Press the switch on the trunk itself
with the smart key in your possession.
✽ NOTICE
The trunk switch is made of rubber.
Do not press it using a sharp object
such as a nail, key, screwdriver, or
drill.
CAUTION
- If the switch on the trunk cannot
be pushed due to freezing,
do not press the switch with
excessive power. Press the
switch on the trunk after
removing the ice around the
switch.You may also open the
trunk by using the trunk open
button on smart key or inside
of the vehicle.
- When using automatic car
wash, be sure to lock the central
door lock switch after the
trunk is fully closed.
- During high pressure car
wash, be careful as the switch
on the trunk can be pressed
by the water injection pressure
and the trunk can be
open.

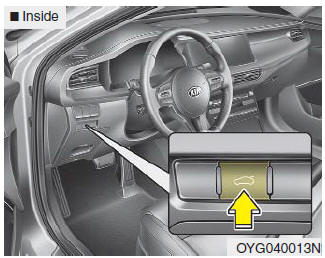

To open the trunk from inside the vehicle,
press the trunk lid release switch.
✽ NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
WARNING
The trunk swings upward. Make
sure no objects or people are
near the rear of the vehicle
when opening the trunk.
✽ NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not
work properly due to freezing conditions.
• Once the system decides it is dangerous
for a passenger to open a
vehicle door by sensing the
approaching of a vehicle from
behind when the person is opening
the door, the warning mess ...
To close, lower the trunk lid, then
press down on it until it locks. To be
sure the trunk lid is securely fastened,
always check by trying to pull
it up again.
WARNING - Exhaust
Fumes
The ...
