Kia Cadenza: Reverse Parking Collision-Avoidance Assist (PCA) / Warning and Control

Kia Cadenza YG 2016-2024 Owners Manual / Features of your vehicle / Reverse Parking Collision-Avoidance Assist (PCA) / Warning and Control

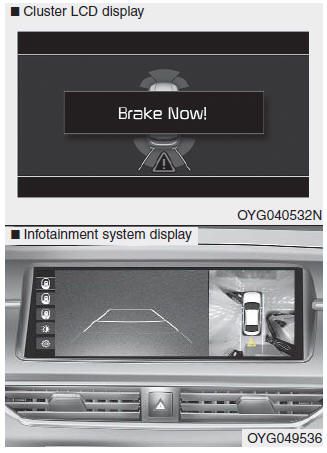

Active assist

The brake assist will turn off when :

- The driver shifts the gear to P (Park) or D (Drive)
- The driver depresses the brake pedal with sufficient power
- The braking has been assisted for approximately 2 seconds

The warning will turn off when :

- The driver shifts the gear to P (Park), N (Neutral), or D (Drive)

The brake control may not operate properly depending on the status of the ESC (Electronic Stability Control). There will only be a warning when :

- The ESC (Electronic Stability Control) warning light is on
- The ESC (Electronic Stability Control) is engaged in a different function
