Kia Cadenza: Driver Attention Warning (DAW) / Warning Timing
.jpg)

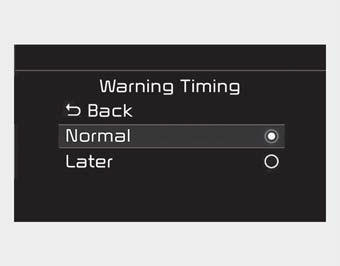

- The driver can select the initial
warning activation time select
“Settings > Vehicle > Driver
Assistance > Warning Timing” in
the Infotainment System screen.
The options for the initial Inattentive
Driving Warning includes the following:
- Normal :
Driver Attention Warning helps
alert the driver of his/her fatigue
level or inattentive driving practices
faster than ‘Later’ mode.
- Later :
Driver Attention Warning helps
alert the driver of his/her fatigue
level or inattentive driving practices
later than Normal mode.
- The set-up of Driver Attention
Warning will be maintained, as
selected, when the engine is restarted.
✽ NOTICE
Other driver assistance systems like
Forward Collision-Avoidance Assist,
etc. can be changed when warning
time setting is changed.
DAW displays the driver’s attention
level by integrating driving pattern
and informs the driver when the vehicle
ahead depart while stopping
Inattentive Driving Warning
Display the driver's ...
The driver can monitor their driving
conditions on the LCD display.
- Select 'Driver Assistance' and
then ‘Driver Attention Warning’
For more details, please scan the
QR code i ...
Other information:
Components
1. Front housing2. Planet gear shaft assembly3. Lever4. Lever packing5. Starter solenoid assembly6. Packing7. Planet gear 8. Shield9. Armature assembly10. York assembly11. Brush holder assembly12. Rear housing13. Through bolt14. Lever plate
...
Removal
1.
Remove the front wheel & tire.
Tightening torque:
88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft)
2.
Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front caliper assembly (A).
Tightening torque:
Brake hose to caliper(C):
24.5 ~29.4 ...
