Hub nut tightening sequence
Tighten the hub nuts as follows.

Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)


When using an impact gun, final tightening torque should be checked using a torque wrench.
Run out inspection
1.
Jack up the vehicle.
2.

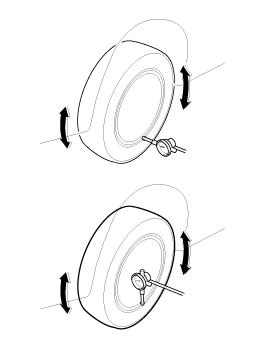

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out
Aluminum
Radial mm(in.)
Below 0.3(0.012)
Lateral mm(in.)
Below 0.3(0.012)

3.
If measured value exceeds the standard value, replace the wheel.

Tire Repair procedures
Tire wear 1. Measure the tread depth of the tires. Tread depth [limit] : 1.6 mm (0.063 in.) 2. If the remaining tread depth (A) is less than the limit, replace the tire. &nb ...
