Kia Cadenza YG: Head lamp leveling Device / Auto Head lamp leveling Unit Schematic Diagrams

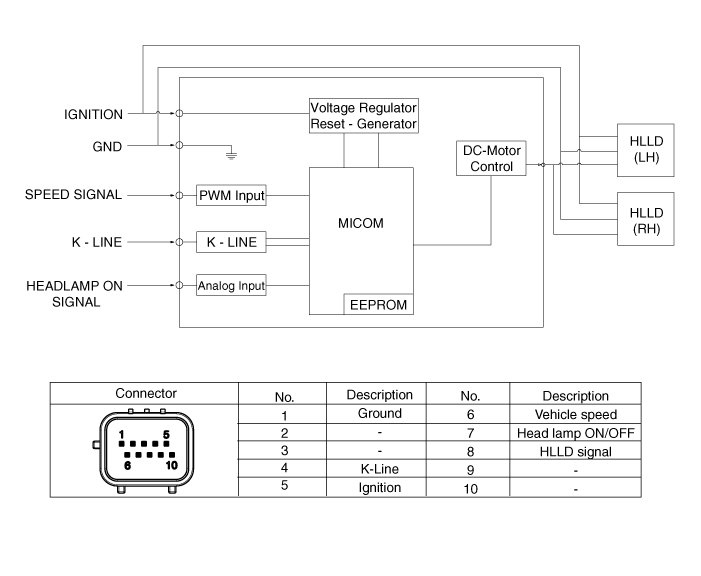

| Circuit Diagram |
Component Location 1. Head lamp leveling unit and sensor2. Head lamp leveling actuator
Description According to driving environment and loading state of vehicle, head lamp lighting direction is changed to keep the driver''s visibility range and to protect the driver''s vision from glare, aiming at safety driving.
