Kia Cadenza YG: Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

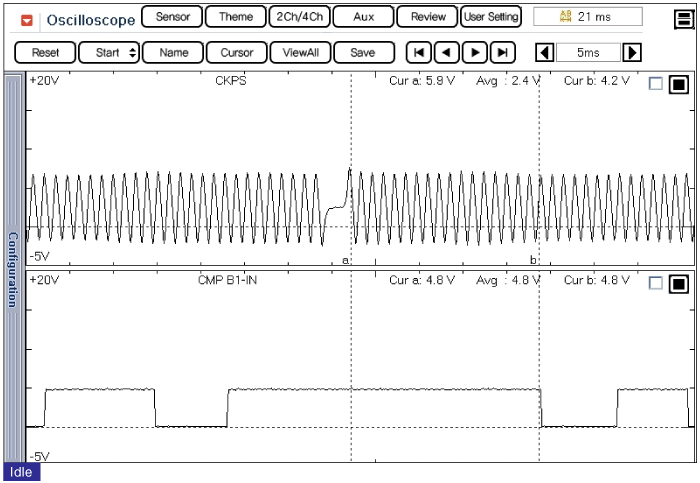

Wave Form

    Specification ItemSpecificationOutput Voltage (V)High: 5.0VLow: 0.7VAir Gap (mm)0.5 ~ 1.5

    Circuit Diagram

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Schematic Diagrams

    Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.

    Kia Cadenza YG 2016-2021 Service Manual: Blower Resistor Repair procedures

    Inspection 1. Measure terminal - to - terminal resistance of blower resistor. 2. If measure resistance isnot within specification, the blower resistor must be replaced. Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower cover (A) and then disconnect the connector (B).
