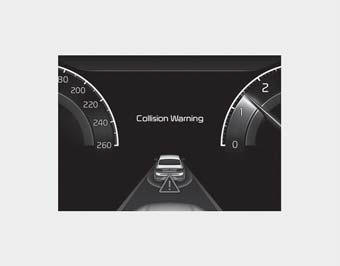

Kia Cadenza: When the lane ahead is clear / Collision Warning
If there is a high risk of collision due
to sudden braking of the front vehicle
or lack of safety distance with the
vehicle ahead during SCC driving, so
that if the driver's brake or steering
wheel operation is required, the
Distance Step with the vehicle ahead
will blink on the cluster and a collision
warning will sound.
In this case, immediately reduce the
speed.
✽ NOTICE
- Even if the warning message does
not appear and warning chime
does not sound, always pay attention
to driving conditions to prevent
dangerous situations from
occurring.
- Playing the vehicle audio system
at high volume may cause the
occupants to not hear the system
warning sounds.
- If the vehicle cannot keep the
enough set distance, the warning
will sound and blink on the cluster.
If a warning sounds, check the
nearby traffic condition and if
necessary, control the speed by
depressing the brake. Always pay
attention in case of danger, even if
there are no warning sound.
✽ NOTICE
- If the speed of the vehicle ahead is
similar to or faster than your vehicle,
the system may not warn you
as you do not maintain enough set
distance. Always pay attention in
case of danger, even if there is no
warning sound.
- If the speed of the vehicle ahead is
too slow, the system may not warn
you as you do not maintain enough
set distance. Always pay attention
in case of danger, even if there is
no warning sound.
- If you set SCC speed and depress
the accelerator pedal, the system
may not warn you as you do not
maintain enough set distance.
Always pay attention in case of
danger, even if there is no warning
sound.

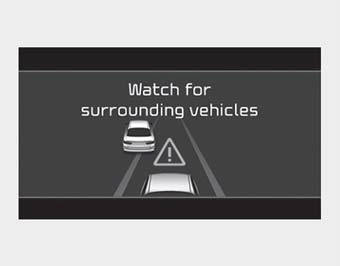

If the vehicle ahead (vehicle speed:
less than 20 mph (30 km/h) disappears
to the next lane, the warning
chime will sound and a message will
appear. Adjust your vehicle speed for
vehicles or objects that can suddenly
appear in front of you by depressing
the brake pedal according to the
road condition ahead and driving
condition.
The vehicle speed will maintain the
set speed.
The vehicle will maintain the set
speed, when the lane ahead is
clear.
The vehicle will slow down or
speed up to maintain the sele ...
Use switch or pedal to accelerate
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if
the vehicle ahead of you starts
moving, your vehicle will start as
we ...
