Kia Cadenza: Engine Control System / Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Components and Components Location

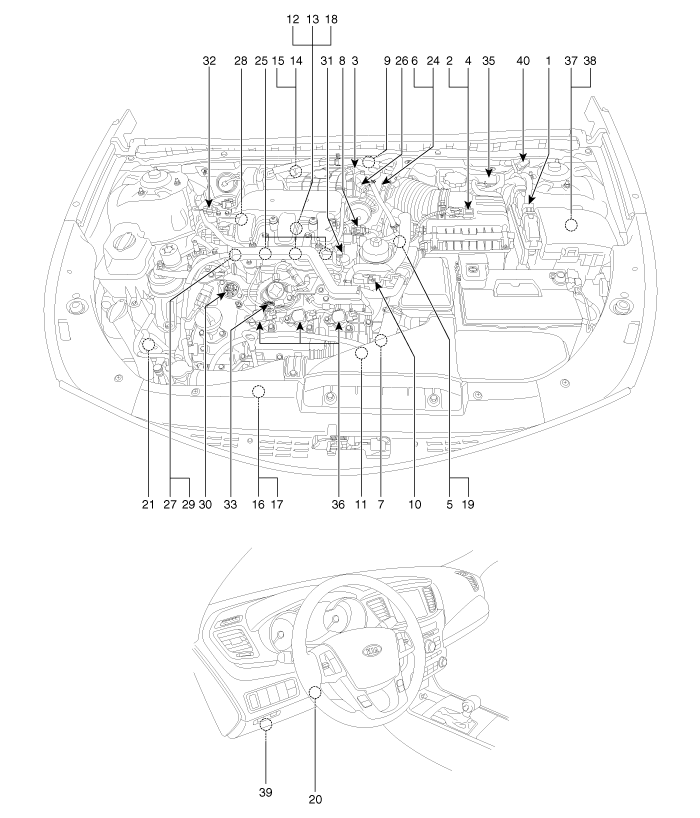

Components Location

1. ECM (Engine Control Module)
2. Barometric Pressure Sensor (BPS)
3. Manifold Absolute Pressure Sensor (MAPS)
4. Intake Air Temperature Sensor (IATS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
12. Knock Sensor (KS) [Bank 1]
13. Knock Sensor (KS) [Bank 2]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
18. Rail Pressure Sensor (RPS)
19. CVVT Oil Temperature Sensor (OTS)
20. Accelerator Position Sensor (APS)
21. A/C Pressure Transducer (APT)

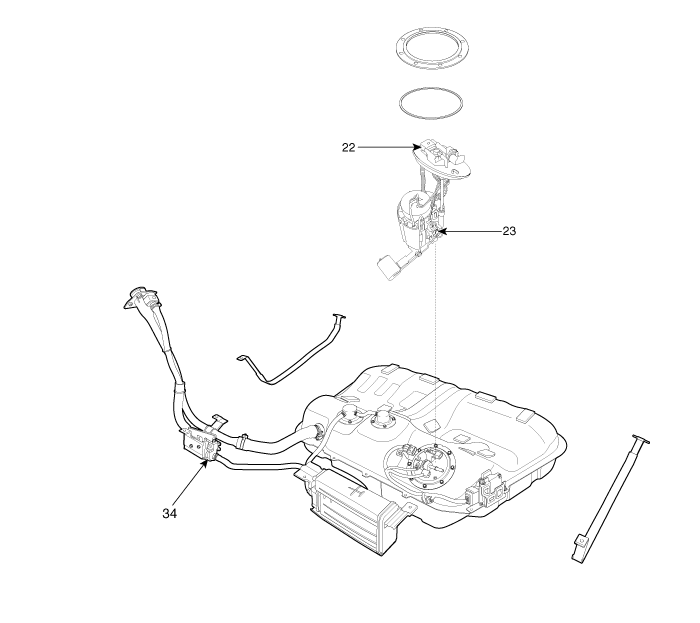

22. Fuel Tank Pressure Sensor (FTPS)
23. Fuel Level Sender (FLS)
24. ETC Motor [integrated into ETC Module]
25. Injector
26. Purge Control Solenoid Valve (PCSV)
27. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
28. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
29. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]
30. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]
31. Variable Intake Solenoid (VIS) Valve #1
32. Variable Intake Solenoid (VIS) Valve #2
33. Fuel Pressure Control Valve (FPCV)
34. Canister Close Valve (CCV)
35. Injector Drive Box (IDB)
36. Ignition Coil
37. Main Relay
38. Fuel Pump Relay
39. Data Link Connector (DLC) [16 Pin]
40. Multi-Purpose Check Connector [20 Pin]

1. ECM (Engine Control Module)
2. Barometric Pressure Sensor (BPS)
4. Intake Air Temperature Sensor (IATS)

3. Manifold Absolute Pressure Sensor (MAPS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
26. Purge Control Solenoid Valve (PCSV)
5. Engine Coolant Temperature Sensor (ECTS)

7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]

11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
12. Knock Sensor (KS) [Bank 1]
13. Knock Sensor (KS) [Bank 2]

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]

18. Rail Pressure Sensor (RPS)
19. CVVT Oil Temperature Sensor (OTS)

20. Accelerator Position Sensor (APS)
21. A/C Pressure Transducer (APT)

22. Fuel Tank Pressure Sensor (FTPS)
23. Fuel Level Sender (FLS)

25. Injector
27. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
29. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]

28. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
30. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]

31. Variable Intake Solenoid (VIS) Valve #1
32. Variable Intake Solenoid (VIS) Valve #2

33. Fuel Pressure Control Valve (FPCV)
36. Ignition Coil
35. Injector Drive Box (IDB)

37. Main Relay
38. Fuel Pump Relay
39. Data Link Connector (DLC) [16 Pin]

40. Multi-Purpose Check Connector [20 Pin]
