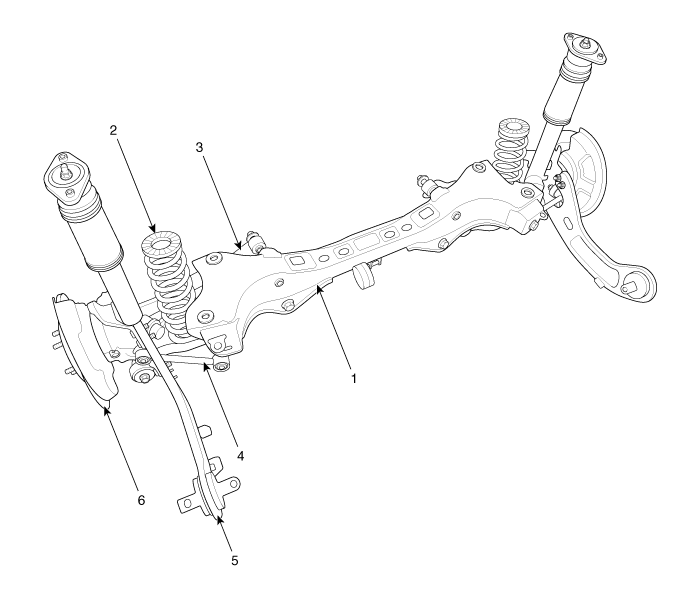

Components

1. Sub frame
2. Coil spring
3. Upper arm
4. Assist arm
5. Trailing arm
6. Rear axle



    Components 1. Self locking nut2. Bracket assembly3. Bumper rubber4. Dust cover5. Shock absorber
