Kia Cadenza YG: Seat Belt / Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Seat Belt / Components and Components Location

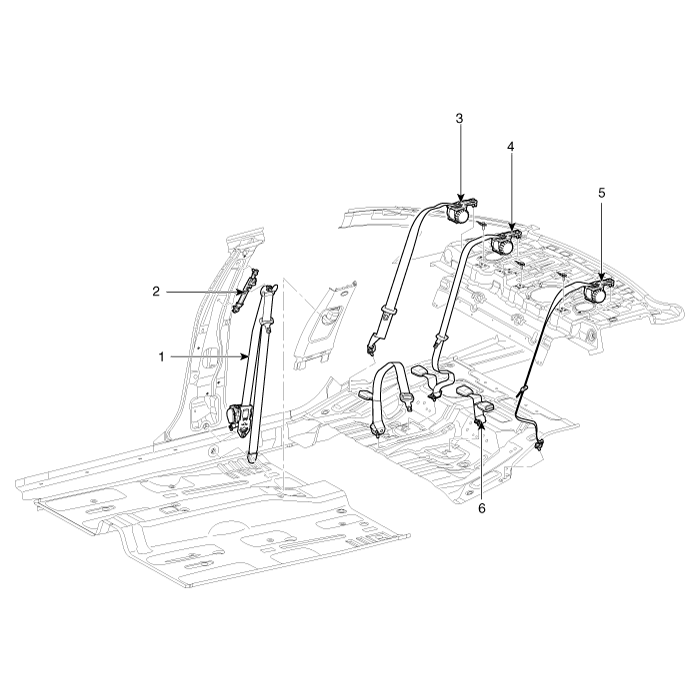

Components

1. Front seat belt
2. Height adjuster
3. Rear seat belt (RH)
4. Rear center seat belt
5. Rear seat belt (LH)
6. Rear center seat belt buckle

    Replacement Front Seat Belt Replacement     • When installing the belt, make sure not to damaged the pretensioner.
