Kia Cadenza: Power Windows / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Power Windows / Components and Components Location

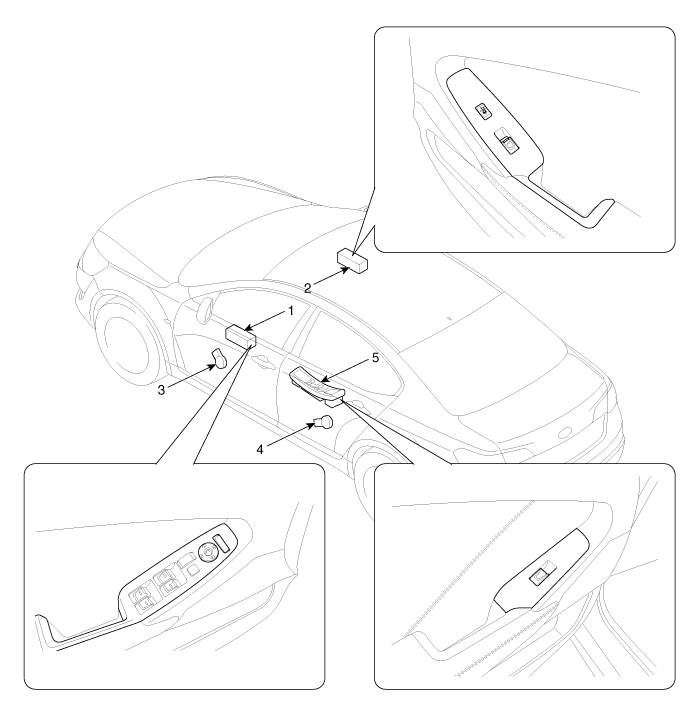

Component Location

1. Driver power window main switch
2. Passenger power window switch
3. Front window motor
4. Rear window motor
5. Rear window switch

Power Windows
...

Description and Operation
Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/ ...
