Kia Cadenza: Windshield Wiper/Washer / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and Components Location

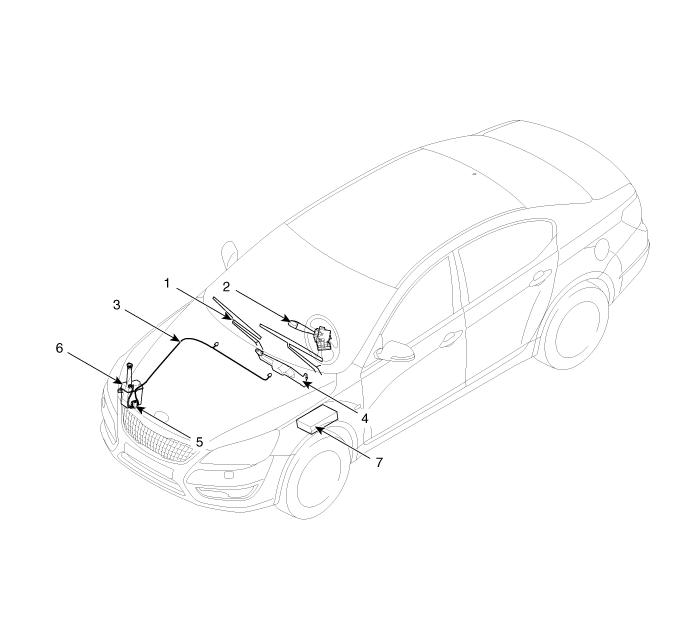

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Wiper relay (Engine room relay box)
