Kia Cadenza YG: Electro Chromic Inside Rear View Mirror / Components and Components Location

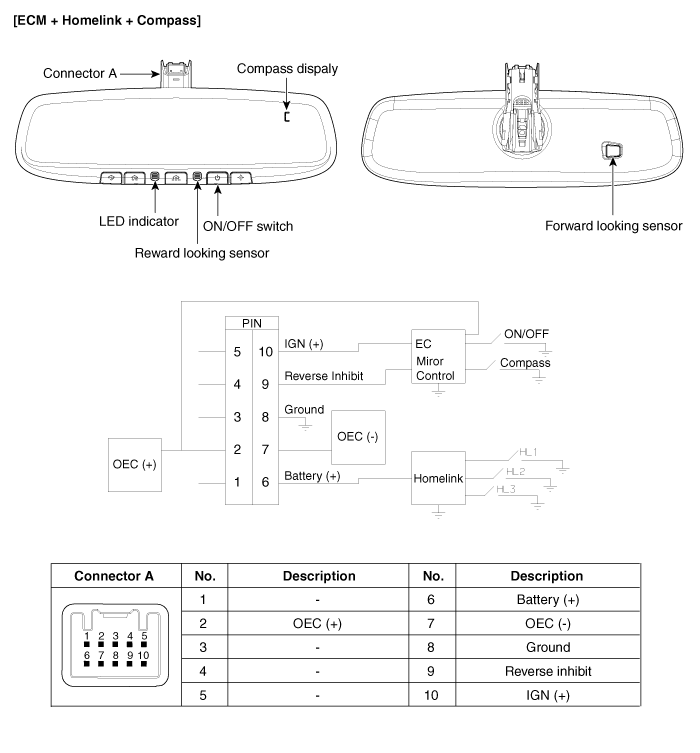

| Components |
Description The ECM (Electro Chromatic inside rear view Mirror) is for dimming the reflecting light from a vehicle behind at night, in order the user not to be dazzled by the light.
