Kia Cadenza YG: Blind Spot Detection System / Components and Components Location

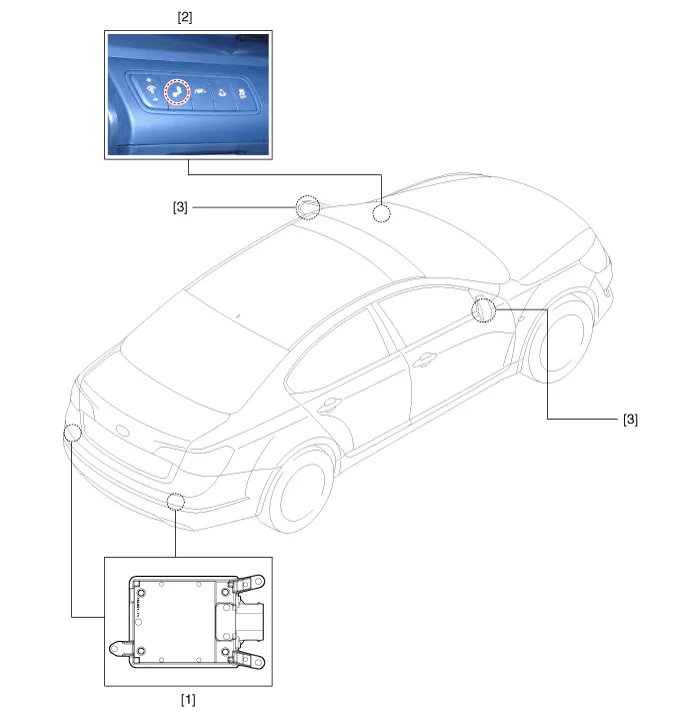

| Components |
| 1. Blind Spot Detection (BSD) Unit 2. BSD switch | 3. BSD warning lamp (Built in the outside mirror) |
Specifications ItemsSpecificationRated voltageDC 12VOperating voltage9V ~ 16VOperating speed15km/h ~ 250km/hSensible distance70m (Sedan)Curvature radiusStart : More than 100mStop : Less than 70mFrequency24 GHzNumbers2EA (Master 1EA, Slave 1EA)
Description BSD is a system that uses two magnetic wave radar sensors attached on the rear bumper to measure the distance from the following vehicles and provides the sensing and (visual and auditory) alarm of any vehicle coming into the blind spot.
