Kia Cadenza YG: Lighting System / Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Lighting System / Components and Components Location

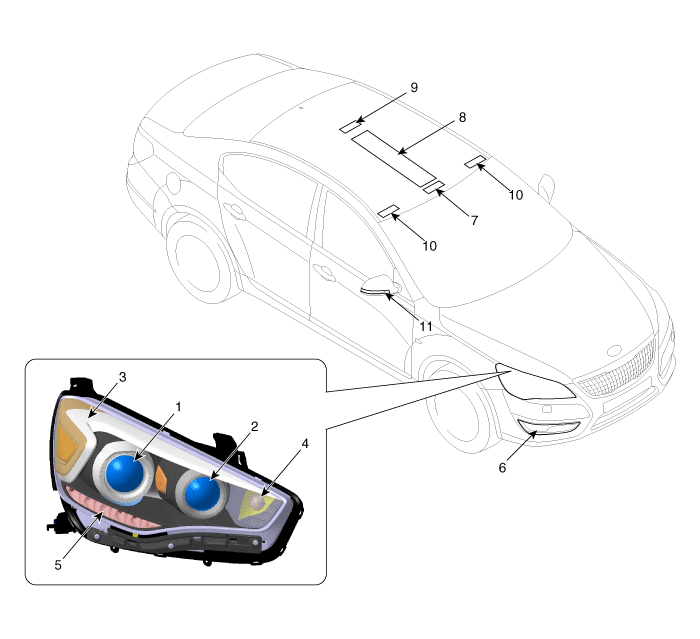

Component Location (1)

1. Head lamp (Low)
2. Head lamp (High)
3. Position lamp
4. Turn signal lamp
5. DRL
6. Fog lamp
7. Overhead console lamp (General/ Panorama roof)
8. Deluxe overhead console lamp (Mode lamp + Map lamp + Room lamp)
9. Room lamp
10. Vanity lamp
11. Side repeater lamp (Outside mirror)

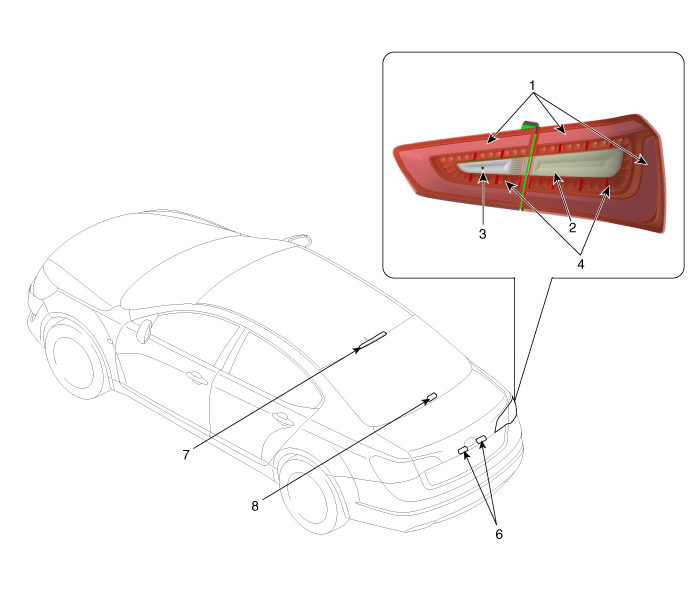

Component Location (2)

1. Stop and tail lamp
2. Turn signal almp
3. Back-up lamp
4. Stop lamp

5. License plate lamp
6. High mounted stop lamp
7. Trunk lamp

    Specification ItemTypeWattage (W)FrontHead lamp (High)H965Head lamp (Low)H7/ D1S (HID)55/ 35(HID)Front turn signal lampPY28/828WPosition lampLEDLEDSide repeater lamp (Outside mirror)LEDLEDFront fog lampGeneralH835LEDLEDLEDRearStop and tail lampLEDLEDRear turn signal lampPY2727WBack-up lampW16W16High mounted stop lampLEDLEDLicense plate lampW5W5WInteriorOverhead console lampDeluxeLEDLEDGeneralW10W10WRoom lampFESTOON5Trunk lampFESTOON5Vanity lampFESTOON5

    Component 1. Head lamp assembly lens & housing2. Head lamp high beam bulb3. Dust cap (High)4. Head lamp low beam bulb5. Dust cap (Low)6. Turn signal lamp socket7.
