Kia Cadenza: Cooling System / Water pump Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Mechanical System / Cooling System / Water pump Components and Components Location

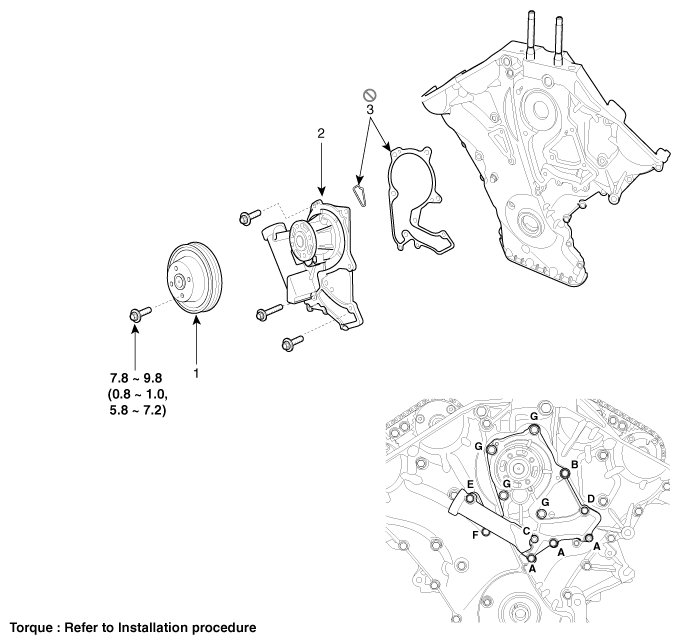

Components

1. Water pump pulley
2. Water pump
3. Water pump gasket

Water Temperature Control Assembly Repair procedures
Removal and Installation     • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.     â ...

Water pump Repair procedures
Removal 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Drain the coolant. (Refer to Cooling System - "Coolant") 3. Remove ...
