Kia Cadenza YG 2016-2025 Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location

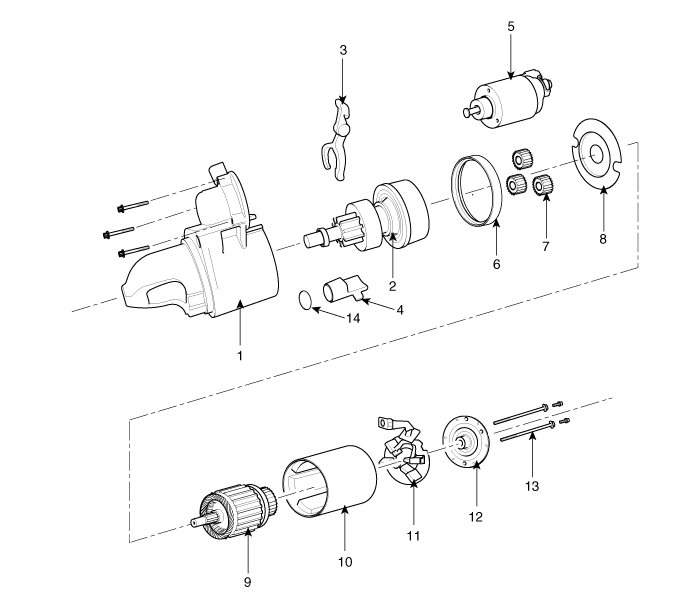

Components

1. Front housing
2. Planet gear shaft assembly
3. Lever
4. Lever packing
5. Starter solenoid assembly
6. Packing
7. Planet gear
8. Shield
9. Armature assembly
10. York assembly
11. Brush holder assembly
12. Rear housing
13. Through bolt
14. Lever plate

Starter Specifications
Specification Starter ItemSpecificationRated voltage12 V, 1.7 kWThe number of pinion teeth12Performance[No-load, 11.5 V]AmpereMax.85 ASpeedMin. 2,550 rpm ...

Starter Schematic Diagrams
Circuit Diagram ...
