Kia Cadenza YG: Starting System / Starter Schematic Diagrams

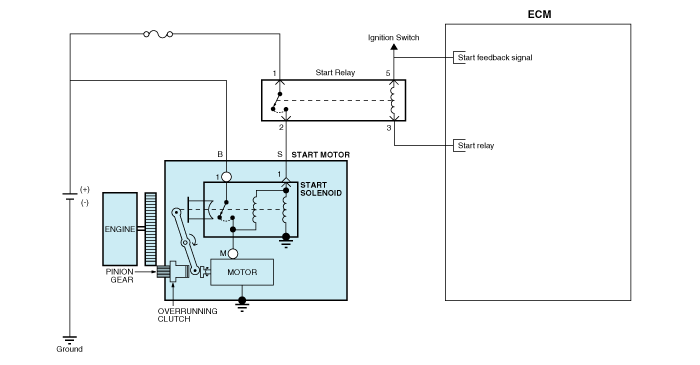

| Circuit Diagram |
Components 1. Front housing2. Planet gear shaft assembly3. Lever4. Lever packing5. Starter solenoid assembly6. Packing7. Planet gear 8. Shield9. Armature assembly10.
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the under (A) and (B). 3. Remove the starter cover (A).
