Kia Cadenza YG: Head lamp leveling Device / Components and Components Location

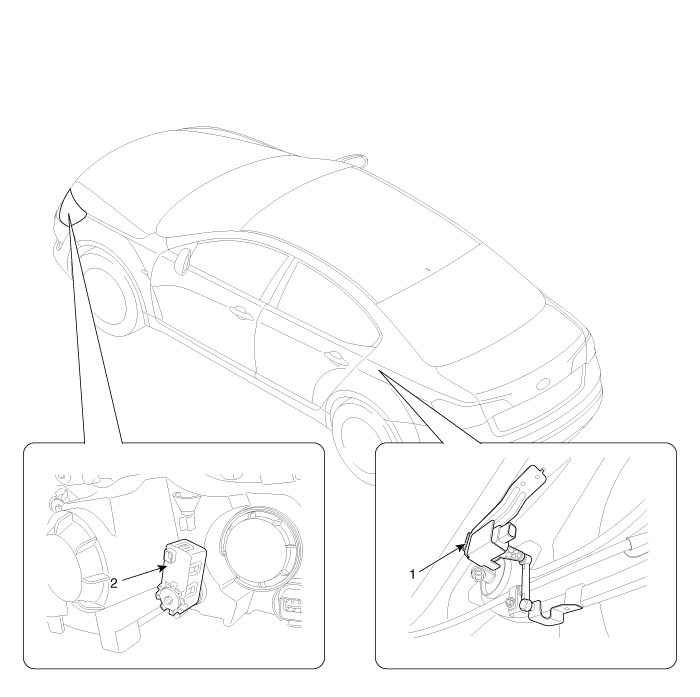

Component Location

1. Head lamp leveling unit and sensor

2. Head lamp leveling actuator

    Circuit Diagram

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Repair procedures

    Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

    Kia Cadenza YG 2016-2021 Service Manual: Intake Actuator Repair procedures

    Inspection 1. Ignition "OFF". 2. Disconnect the intake actuator connector. 3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding terminal 7. 4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
