Kia Cadenza YG: Adaptive Front Lighting System / Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Adaptive Front Lighting System / Components and Components Location

Components

    Specifications ContentValueAFLSNominal VoltageDC 13.5VOperating VoltageDC 9~16VOperating Temperature-40°C ~ +85°C

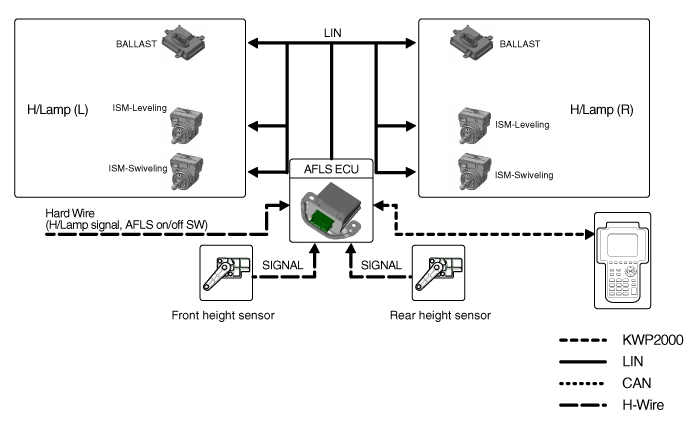

    Circuit Diagram
