Kia Cadenza YG: Cylinder Head Assembly / CVVT & Camshaft Components and Components Location
| Components |

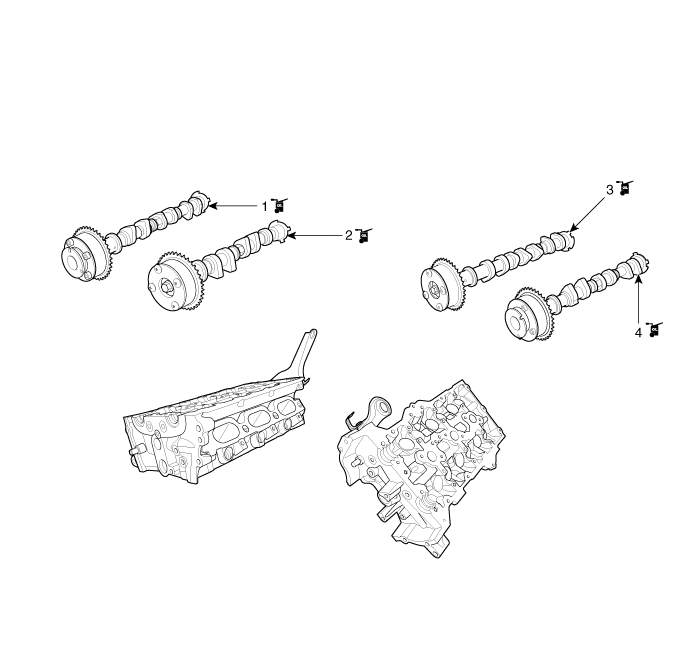

| 1. RH exhaust camshaft 2. RH intake camshaft | 3. LH intake camshaft 4. LH exhaust camshaft |

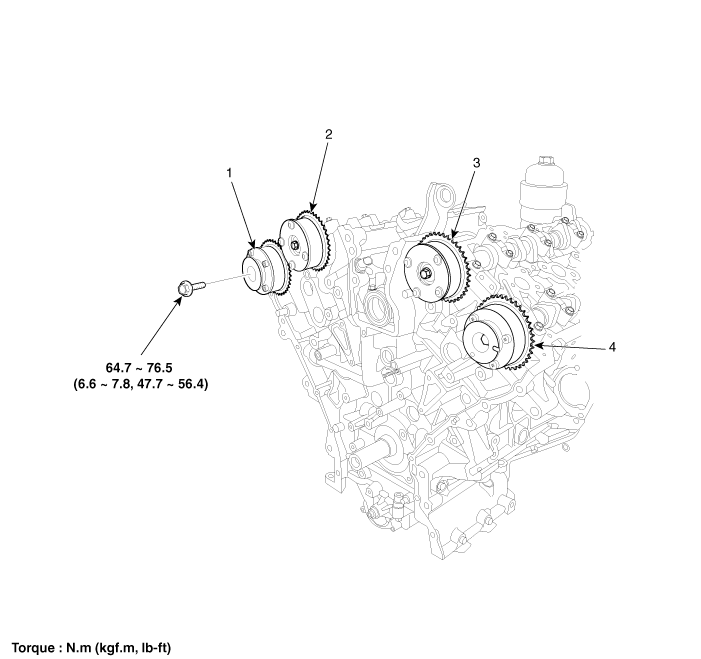

| 1. RH exhaust CVVT 2. RH intake CVVT | 3. LH intake CVVT 4. LH exhaust CVVT |
Removal [LH] 1. Remove the Intake manifold. (Refer to Intake And Exhaust System - "Intake Manifold") 2. Remove the high pressure fuel pump.
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
