Kia Cadenza: Smart Cruise Control (SCC) / Detecting Sensor (front view camera/front radar)

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Smart Cruise Control (SCC) / Detecting Sensor (front view camera/front radar)

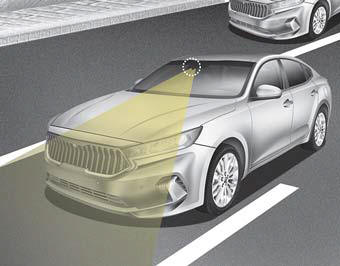

Front view camera

Front view camera is a sensor for detecting lanes and the front vehicles.

If the sensor is covered with dirt, snow or other foreign matter, the sensor’s detection performance will be degraded and SCC will be temporarily cancelled so that it does not properly work.

Always keep the area in front of the sensor clean.

For more information of front view camera, refer to "Lane Keeping Assist (LKA)"

In traffic situation

Use switch or pedal to accelerate In traffic, your vehicle will stop if the vehicle ahead of you stops. Also, if the vehicle ahead of you starts moving, your vehicle will start as we ...

Front radar

Front radar detects the distance to the vehicle ahead. If the sensor or sensor cover is covered with dirt, snow or other foreign matter, the sensor’s detection performance will be degrade ...
