Kia Cadenza YG: Parking Brake System / Electric Parking Brake (EPB) Components and Components Location

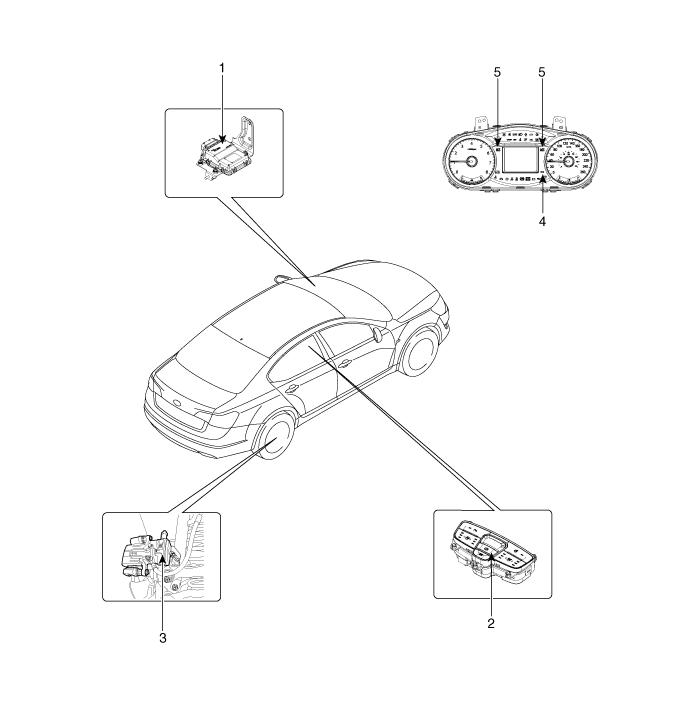

| Components |
| 1. EPB Unit 2. EPB Switch 3. Brake Caliper | 4. EPB Warning Lamp 5. AUTO HOLD Lamp |
Removal Parking Brake Pedal 1. Remove the main crash pad. (Refer to the Body group-crash pad) 2. Remove the cowl cross bar. (Refer to the Body group - Crash pad) 3.
Description The EPB is an electronic parking brake. The EPB is different from existing parking systems which operated with the brake pedal or the lever type.
