Kia Cadenza YG: Front Axle Assembly / Front Hub - Axle Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub - Axle Components and Components Location

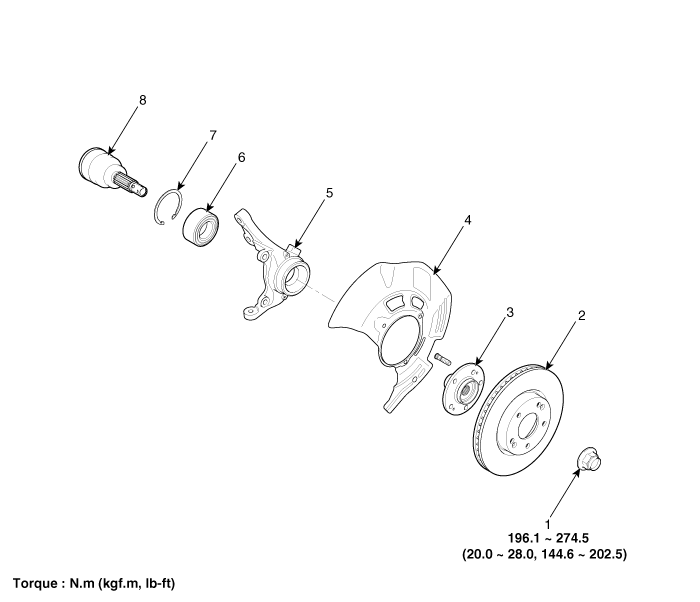

Components

1. Coking nut
2. Brake disc
3. Hub
4. Dust cover
5. Knuckle
6. Wheel bearing
7. Snap ring
8. Drive shaft

    Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub.
