Kia Cadenza: Front Suspension System / Front Strut Assembly Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and Components Location

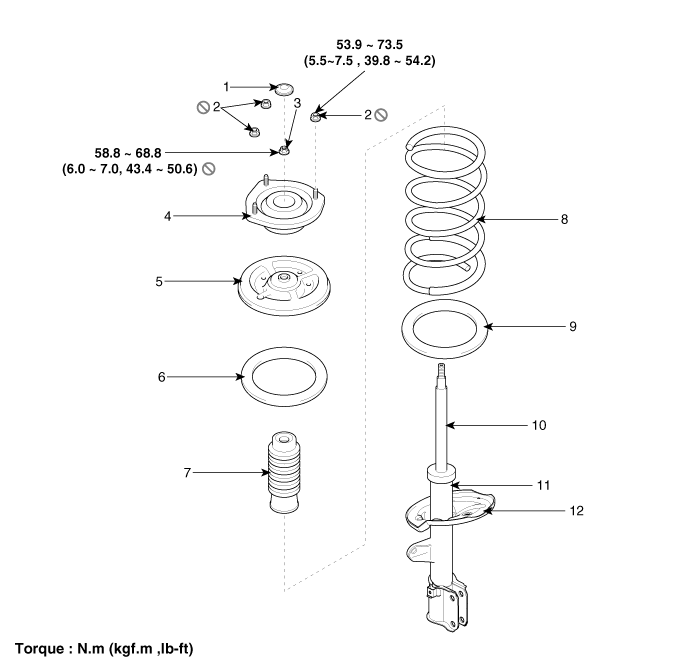

Components

1. Insulator cap
2. Upper locking nut
3. Self locking nut
4. Insulator
5. Strut bearing
6. Spring upper pad
7. Strut dust cover & Bumper rubber
8. Coil spring
9. Spring lower pad
10. Piston rod
11. Strut assembly
12. Spring lower seat

Components and Components Location
Components 1. Sub frame2. Lower arm3. Front axle4. Drive shaft5. Steering gear box6. Front stabilizer bar7. Front strut assembly ...

Front Strut Assembly Repair procedures
Replacement 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bol ...
