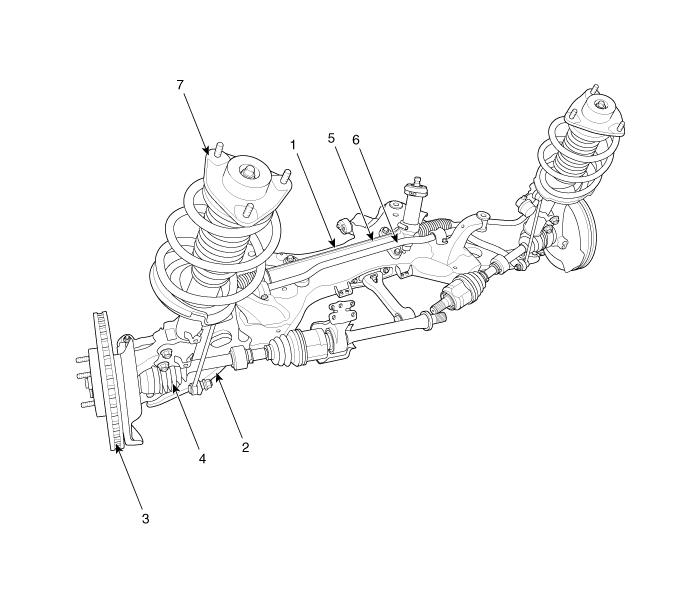

Components

1. Sub frame
2. Lower arm
3. Front axle
4. Drive shaft
5. Steering gear box
6. Front stabilizer bar
7. Front strut assembly



Front Suspension System
...

Front Strut Assembly Components and Components Location
Components 1. Insulator cap2. Upper locking nut3. Self locking nut4. Insulator 5. Strut bearing6. Spring upper pad7. Strut dust cover & Bumper rubber8. Coil spring9. Spring lower pad10. Pisto ...
