Kia Cadenza YG: Front Suspension System / Front Strut Assembly Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and Components Location

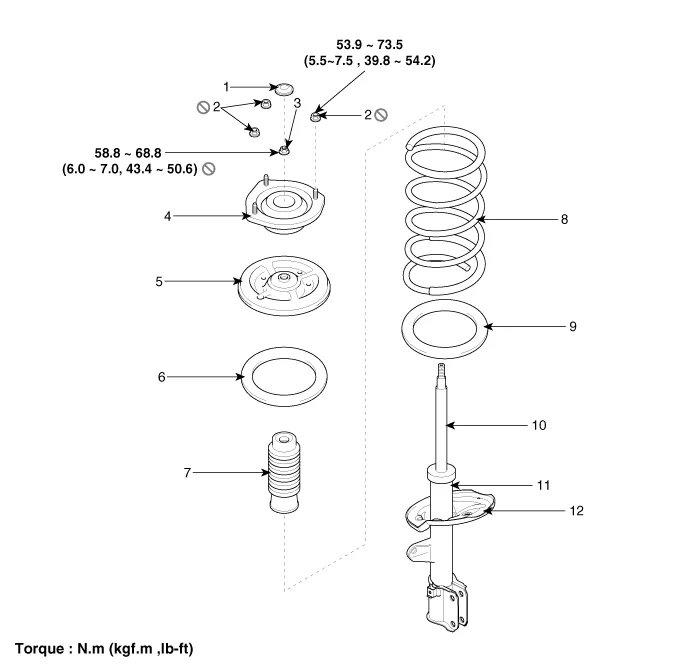

Components

1. Insulator cap
2. Upper locking nut
3. Self locking nut
4. Insulator
5. Strut bearing
6. Spring upper pad
7. Strut dust cover & Bumper rubber
8. Coil spring
9. Spring lower pad
10. Piston rod
11. Strut assembly
12. Spring lower seat

    Components 1. Sub frame2. Lower arm3. Front axle4. Drive shaft5. Steering gear box6. Front stabilizer bar7. Front strut assembly

    Replacement 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bolts when removing the front wheel & tire.
