Kia Cadenza: Light bulbs / Glove box lamp (Bulb type)
bulb replacement
![](images/glove_box_lamp_bulb_type_bulb_replacement-1290/904/pages.70(4).jpg)

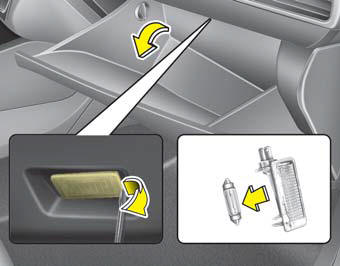

1. Using a flat-blade screwdriver,
gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
CAUTION
Be careful not to dirty or damage
the lens, lens tab, and plastic
housings.
