Kia Cadenza: Light bulbs / Trunk room lamp (LED type)
bulb replacement
.jpg)

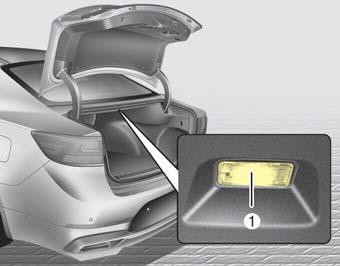

If the trunk room lamp (LED type) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the trunk room lamp (LED
type), for it may damage related
parts of the vehicle.
1. Using a flat-blade screwdriver,
gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb in the socket.
4. Install the lamp assemb ...
