Kia Cadenza YG: Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

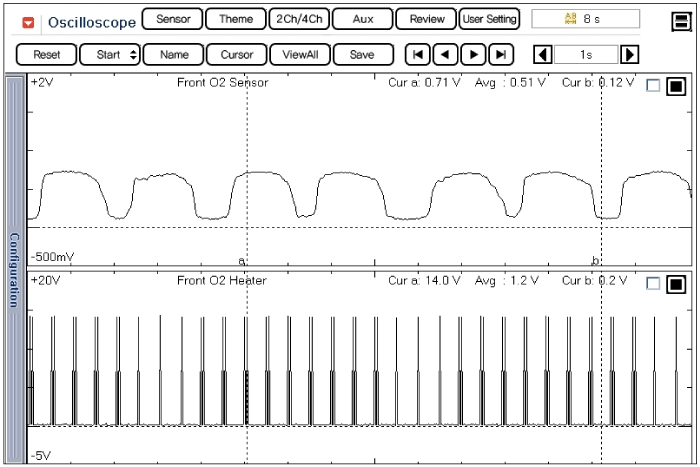

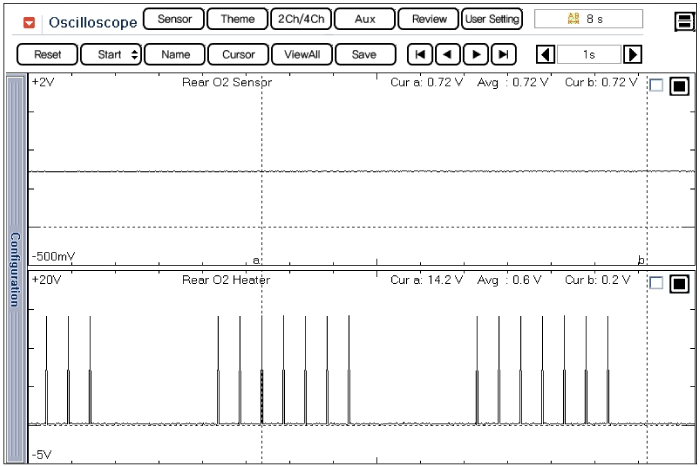

| Wave Form |
Specification A/F Ratio (λ)Output Voltage(V)RICHMin. 0.8LEANMax. 0.1 ItemSpecificationHeater Resistance (Ω)3.3 ~ 4.1[20°C(68°F)]
Circuit Diagram
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
Kia Cadenza YG 2016-2021 Service Manual: Blower Unit Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower unit.(Refer to HA group – heater unit). 3. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 3 screws. Make sure that there is no air leaking out of the blower and duct joints.
