Kia Cadenza: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

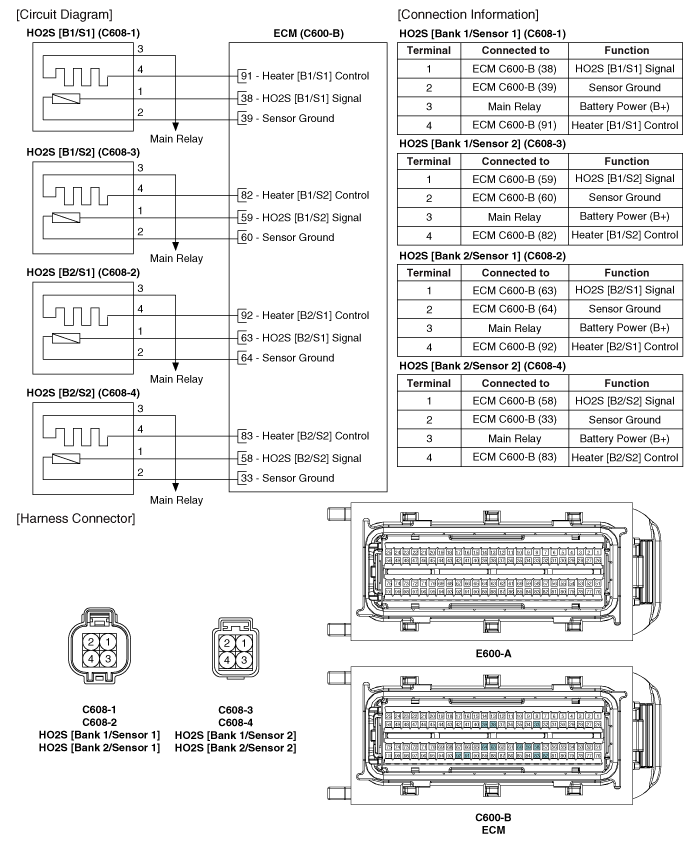

Circuit Diagram

Heated Oxygen Sensor (HO2S) Troubleshooting
Wave Form ...

Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 3 and 4. 4. Check that the resistance is within the speci ...
