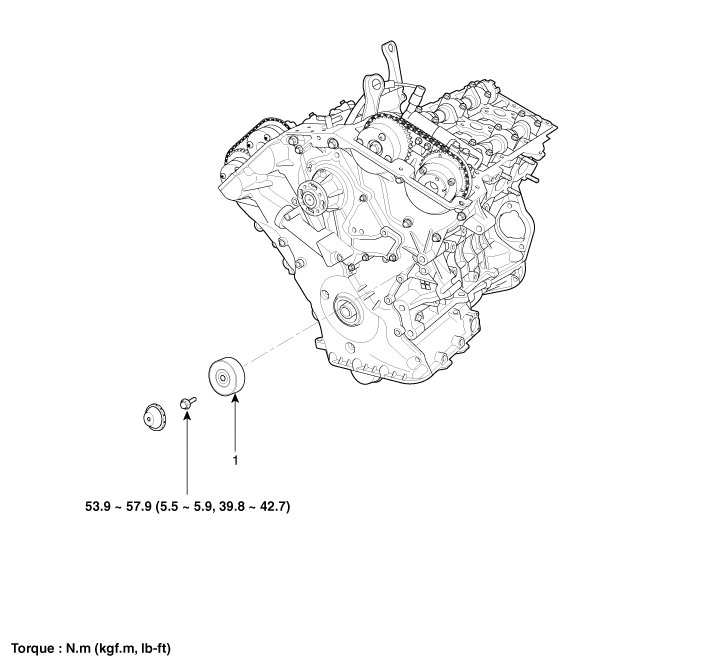

Components

1. Idler

Drive Belt Repair procedures
Removal and Installation 1. Disconnect the battery negative terminal. 2. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A). &n ...

Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt idler (A). Tightening torque : 53.9 ~ 57.9 N.m (5.5 ~ 5.9 kgf.m, 39.8 ...
