Kia Cadenza: IMS (Integrated Memory) / IMS Power Seat Control Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Schematic Diagrams

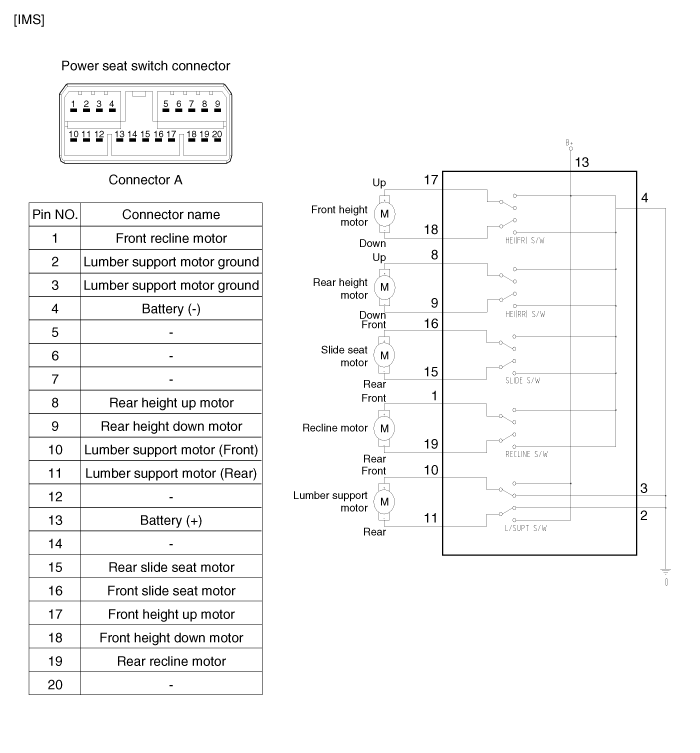

Circuit diagram

IMS Control Switch Repair procedures
Inspection 1. Disconnect the IMS control switch connector. 2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity ...

IMS Power Seat Control Repair procedures
Inspection 1. Remove the IMS control switch connector (A). 2. With the IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not ...
